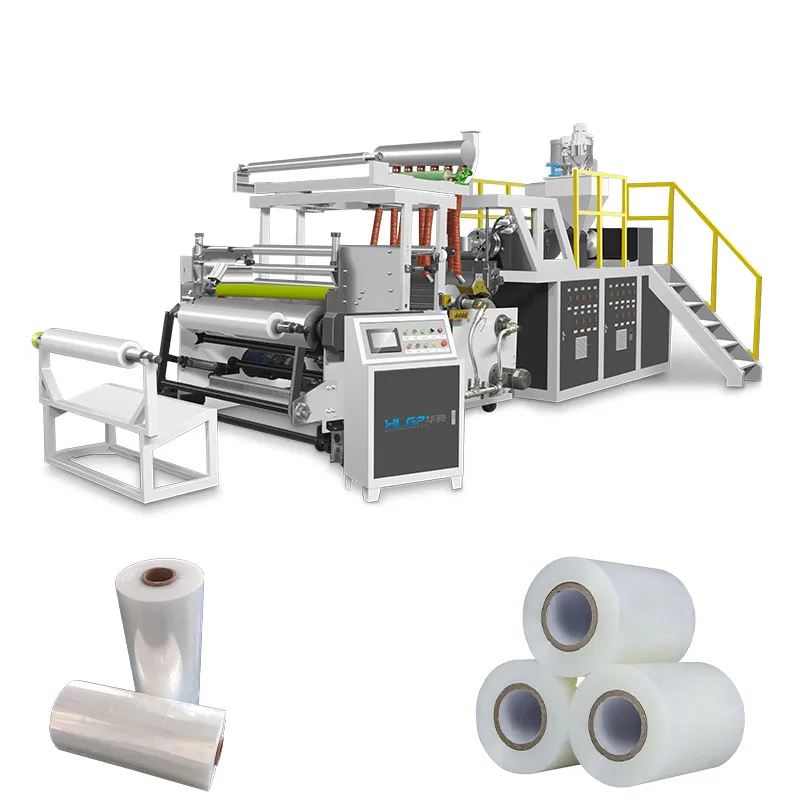

Auto HLCPE 1000 Cast Film Making Machine LDPE Plastic Extruder with Twin Screw and Pump High Accuracy High Efficiency

Auto HLCPE 1000 Cast Film Making Machine LDPE Plastic Extruder with Twin Screw and Pump High Accuracy High Efficiency
  • Auto HLCPE 1000 Cast Film Making Machine LDPE Plastic Extruder with Twin Screw and Pump High Accuracy High Efficiency

    • Auto HLCPE 1000 Cast Film Making Machine LDPE Plastic Extruder with Twin Screw and Pump High Accuracy High Efficiency

    Request a Quote
    applicationGranules, Film, Packagingplastic processedPE, LDPE, LLDPE
    extruder typetwin screwscrew diameter (mm)80/60
    voltage380/220/480VScrew L/D Ratio33:1
    Screw Material38CrMoALAkey selling pointsHigh-Accuracy
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, OtherScrew DesignDouble-screw
    Screw Speed (rpm)75Weight (KG)7000
    dimension(l*w*h)6000x3000x1900power (kw)110
    Product NameCast Film MachineAfter-sales Service ProvidedVideo Technical Support
    Raw materialPE/LDPE/LLDPEL/D33:1
    Line speed80m/minTypeCasting extruder
    Total Power110 KWThickness of Film0.01-0.05mm (min. thickness can be 8 microns)
    Extrusion Output80kg/hr
