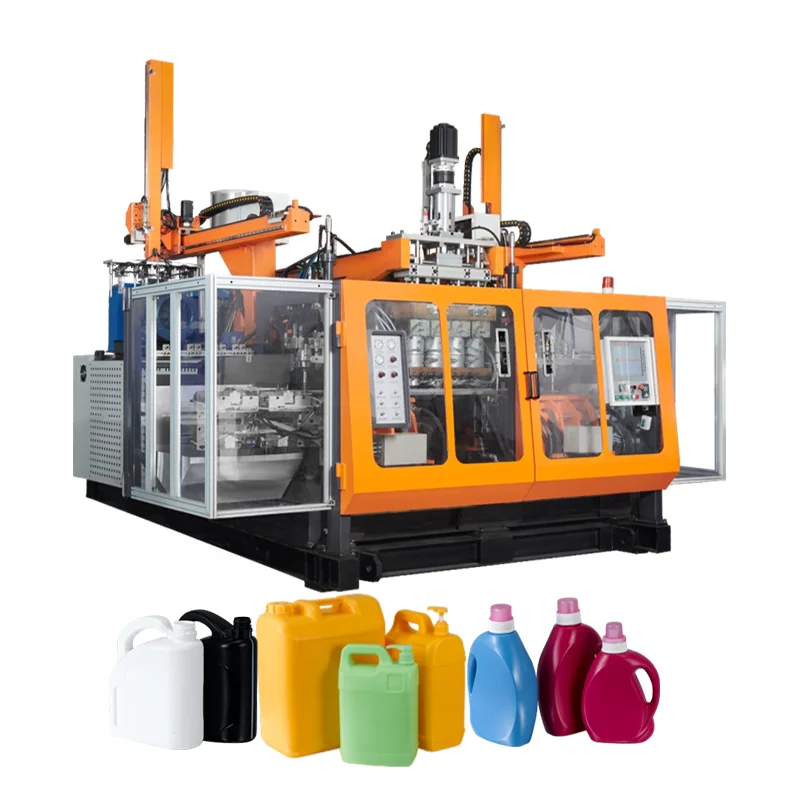

Automatic 1 Gallon 5L Plastic HDPE Bottle Can Blowing Making Tank Container Jar Jug Blowing Molding Machine High Speed

Automatic 1 Gallon 5L Plastic HDPE Bottle Can Blowing Making Tank Container Jar Jug Blowing Molding Machine High Speed
  • Automatic 1 Gallon 5L Plastic HDPE Bottle Can Blowing Making Tank Container Jar Jug Blowing Molding Machine High Speed

    • Automatic 1 Gallon 5L Plastic HDPE Bottle Can Blowing Making Tank Container Jar Jug Blowing Molding Machine High Speed

    Request a Quote
    plastic processedPP, HDPE, PC, ABS, PVC, Polystyrene, PE, EVA, PAClamping Force (kN)256
    voltageCustomizedautomationAutomatic
    No. of Screw Heating Zone5plc brandSiemens
    core componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pumpkey selling pointsAutomatic
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)280 kg/hpower (kw)157.76
    weight (t)16dimension(l*w*h)5900X4970X4000mm
    Screw L/D Ratio27screw diameter (mm)100 mm
    screw heating power(kw)21.6 kWextruder motor power(kw)75 kW
    mold platen size(width)(mm)750 mmmold platen size(height)(mm)465 mm
    air pressure(mpa)0.8 MPaair comsumption(m³/min)0.32 m³/min
    die head heating power(kw)22.21 kWBlow Moulding TypeExtrusion Blow Moulding
    After-sales Service Provided 1Field maintenance and repair serviceAfter-sales Service Provided 2Field installation, commissioning and training
    After-sales Service Provided 3Free spare partsAfter-sales Service Provided 4Video technical support
    After-sales Service Provided 5Online supportAfter Warranty Service 1Video technical support
    After Warranty Service 2Online supportAfter Warranty Service 3Spare parts
