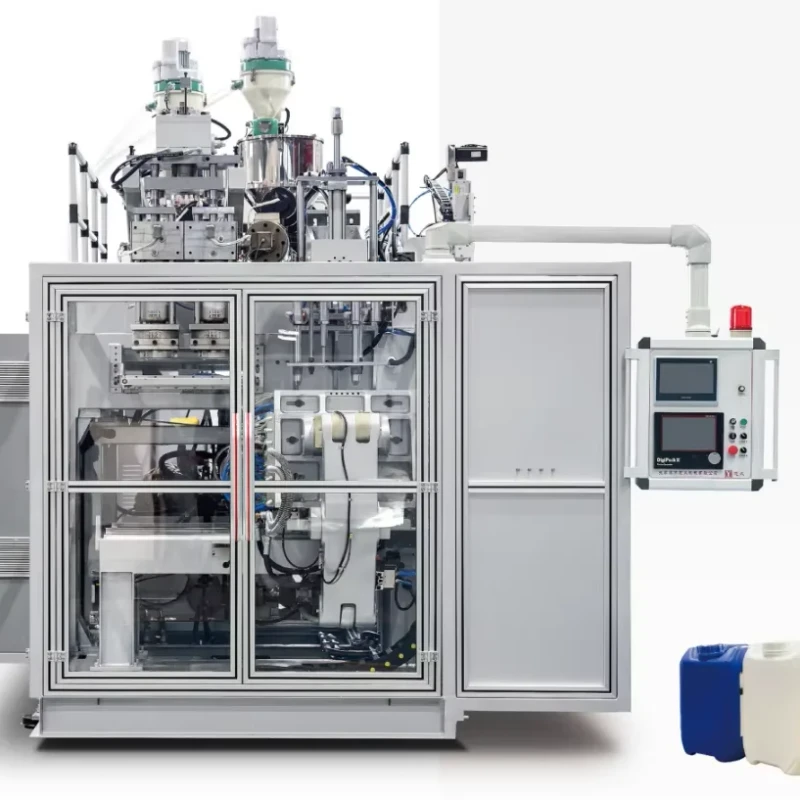

Automatic 5 Gallon Polycarbonate Barrel Blow Moulding Machine 20 Liter PC Bottle Extrusion Blowing PET HDPE Plastic Engine Core
Automatic 5 Gallon Polycarbonate Barrel Blow Moulding Machine 20 Liter PC Bottle Extrusion Blowing PET HDPE Plastic Engine Core
| plastic processed | PP, HDPE, PET, PE/PP, HDPE/PP | Clamping Force (kN) | 180 |
| voltage | 380 V | automation | Automatic |
| No. of Screw Heating Zone | 5 | plc brand | Mitsubishi |
| core components | PLC, Engine, Bearing, Motor | key selling points | Long Service Life, Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 60 | power (kw) | 35 |
| weight (t) | 1.5 | dimension(l*w*h) | 3400 x1600x1800 |
| Screw L/D Ratio | 75 | screw diameter (mm) | 75 |
| screw heating power(kw) | 9 | extruder motor power(kw) | 7.5 |
| mold platen size(width)(mm) | 120 | mold platen size(height)(mm) | 250 |
| air pressure(mpa) | 0.8 | air comsumption(m³/min) | 0.6 |
| die head heating power(kw) | 17 |
