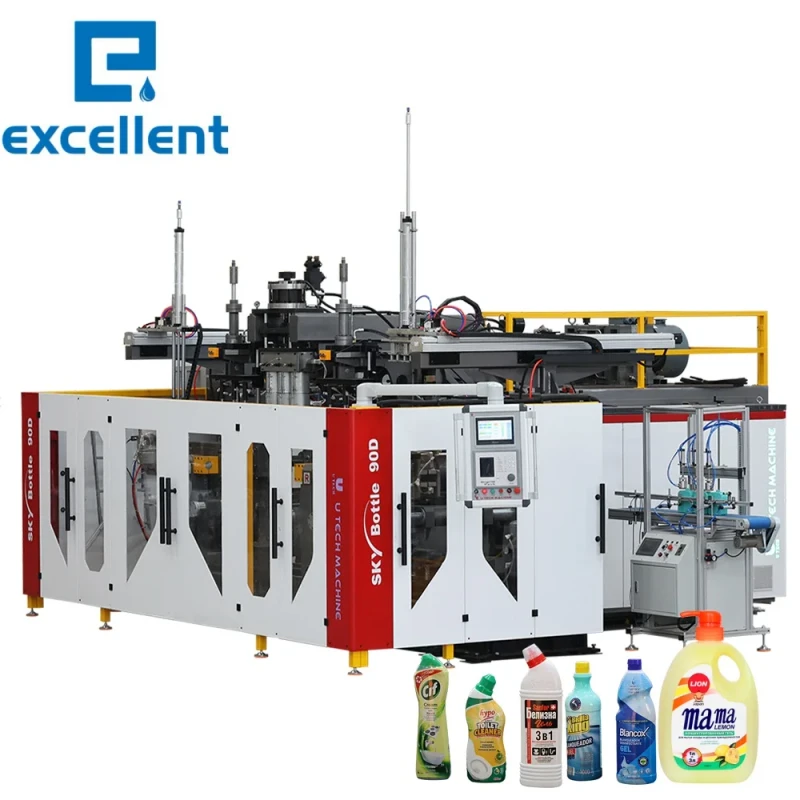

Automatic 750ml 1L 2L Plastic Liquid Soap Conditioner Laundry Bottles Extrusion Blow Molding Detergent Bottle Making Machine

Automatic 750ml 1L 2L Plastic Liquid Soap Conditioner Laundry Bottles Extrusion Blow Molding Detergent Bottle Making Machine
  • Automatic 750ml 1L 2L Plastic Liquid Soap Conditioner Laundry Bottles Extrusion Blow Molding Detergent Bottle Making Machine

    • Automatic 750ml 1L 2L Plastic Liquid Soap Conditioner Laundry Bottles Extrusion Blow Molding Detergent Bottle Making Machine

    Request a Quote
    plastic processedHDPE, LDPE, PP, ABSClamping Force (kN)1000
    voltage380 VautomationAutomatic
    No. of Screw Heating Zone4plc brandMitsubishi
    core componentsMotor, Pressure Vesselkey selling pointsHigh Safety Level, Flexible Manufacturing, High-Accuracy
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)1000power (kw)45
    weight (t)7.5dimension(l*w*h)4.2X2.3X2.6
    Screw L/D Ratio11screw diameter (mm)75
    screw heating power(kw)14.2extruder motor power(kw)22
    mold platen size(width)(mm)400mold platen size(height)(mm)450
    air pressure(mpa)0.8air comsumption(m³/min)1
    die head heating power(kw)12Product nameDaily Chemicals Laundry Detergent Bottle Making Machine
    Blow Moulding TypeExtrusion Blow MouldingSuitable bottle500ml 1L 2L 5L Bottle
    StationDoule StationMaterialPP PE HDPE
    Processing TypeHydraulic Extrusion Blow MoldingParison ControlMOOG 100 Point
    FunctionAutomatic OperationHydraulic ValveJapan Yuken
    PLCJAPAN MITSUBISH
