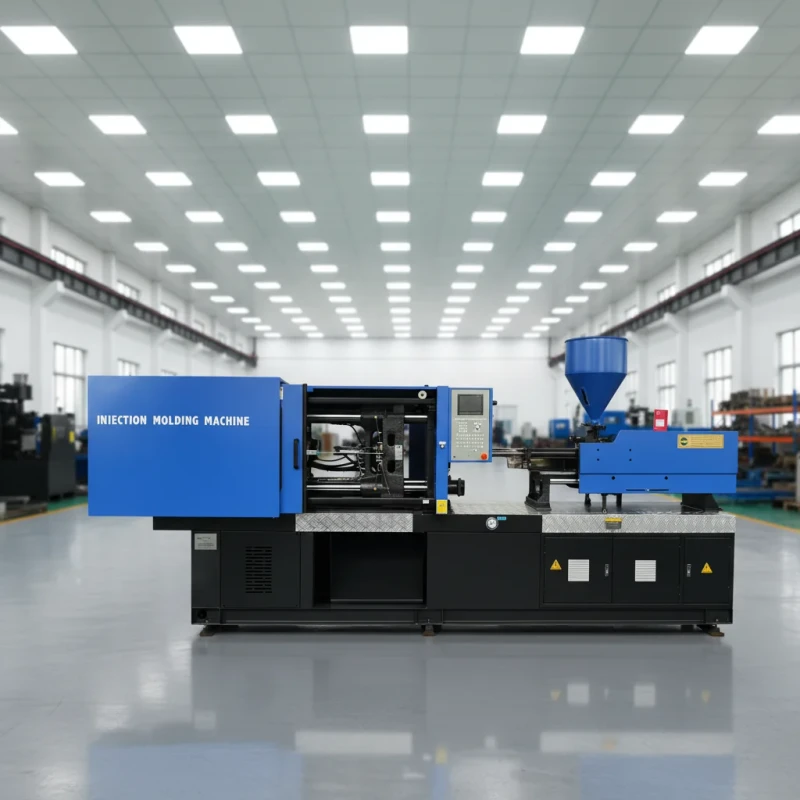

Automatic Hydraulic Horizontal Injection Molding Machine for PE PP ABS PET PC Thermoplastic New Preform Injection Cap Making
Automatic Hydraulic Horizontal Injection Molding Machine for PE PP ABS PET PC Thermoplastic New Preform Injection Cap Making
| machine type | Hydraulic | distance between tie bars | 455*425mm |
| plastic processed | PP, PC, ABS, PET, PVC | style | Horizontal |
| key selling points | Automatic | ejector number | 5 |
| core components | Bearing, Gearbox, PLC, MOTOR, PRESSURE VESSEL | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | Polyethylene (Pe), Polypropylene (PP) |
| plasticizing capacity(g/s) | 155 | injection weight (g) | 286 |
| injection rate (g/s) | 135 | weight (kg) | 5000 |
| power (kw) | 15 | mold height(mm) | 170 - 440 mm |
| ejector stroke(mm) | 155 | ejector force(kn) | 70 |
| theoretical shot volume(cm³) | 318 | screw speed (rpm) | 1 - 190 rpm |
| screw diameter (mm) | 42 | Screw L/D Ratio | 22.3 |
| open stroke(mm) | 405 |
