Professional Manufacturer of Plastic Processing Machinery

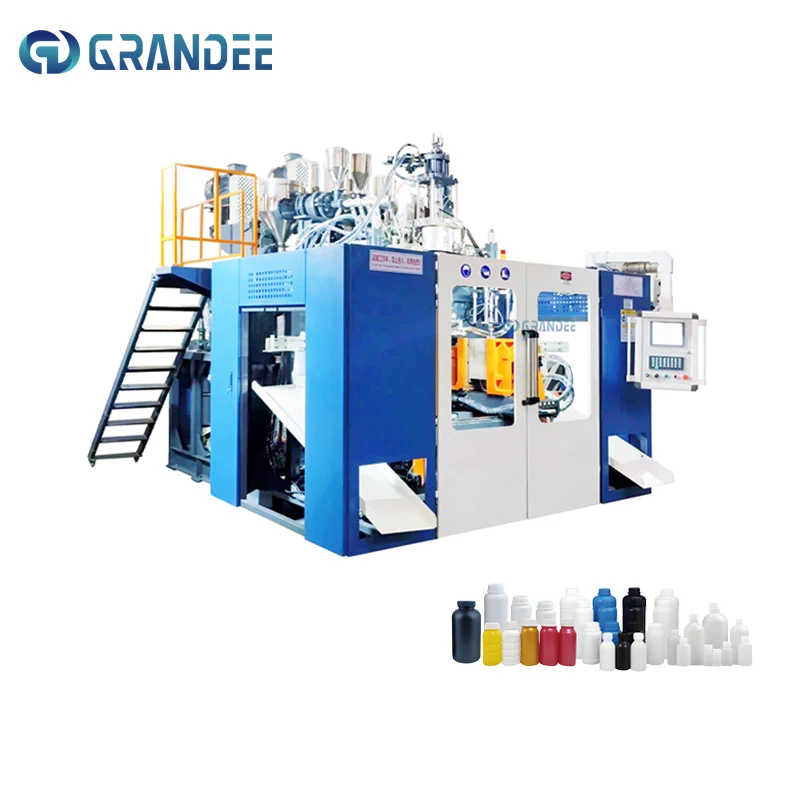

Automatic Injection Blow Molding Machine IBM Machine Jerrycan Extrusion Blow Molding Machine
Automatic Injection Blow Molding Machine IBM Machine Jerrycan Extrusion Blow Molding Machine
| plastic processed | HDPE, PP, ABS, PA, ABS/PP | Clamping Force (kN) | 65 |
| voltage | 380 V, 220 V | automation | Automatic |
| No. of Screw Heating Zone | 3 | plc brand | Siemens |
| core components | PLC, Motor | key selling points | Long Service Life, Easy To Operate, High Safety Level, High Rigidity |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 400 | power (kw) | 3.7 |
| weight (t) | 3.2 | Screw L/D Ratio | 25 |
| screw diameter (mm) | 60 | screw heating power(kw) | 12.6 |
| extruder motor power(kw) | 15 | mold platen size(width)(mm) | 421 |
| mold platen size(height)(mm) | 450 | air pressure(mpa) | 0.6 |
| air comsumption(m³/min) | 0.6 | die head heating power(kw) | 3.7 |
| Machine name | Automatic extrusion blow molding machine | Parison Control | MOOG |
| Suitable tank size | 1L-5L | Capacity | 220-260BPH for 5L |
| Mould | 1 cavity | Suitable bottle | Milk, detergent, lubricant oil, shampoo... |
| Language settings | Chinese and English operation panel | Material application | PP PE PVC ABS HDPE |
| Energy saving | Servo motor system | Die head | Single head |
