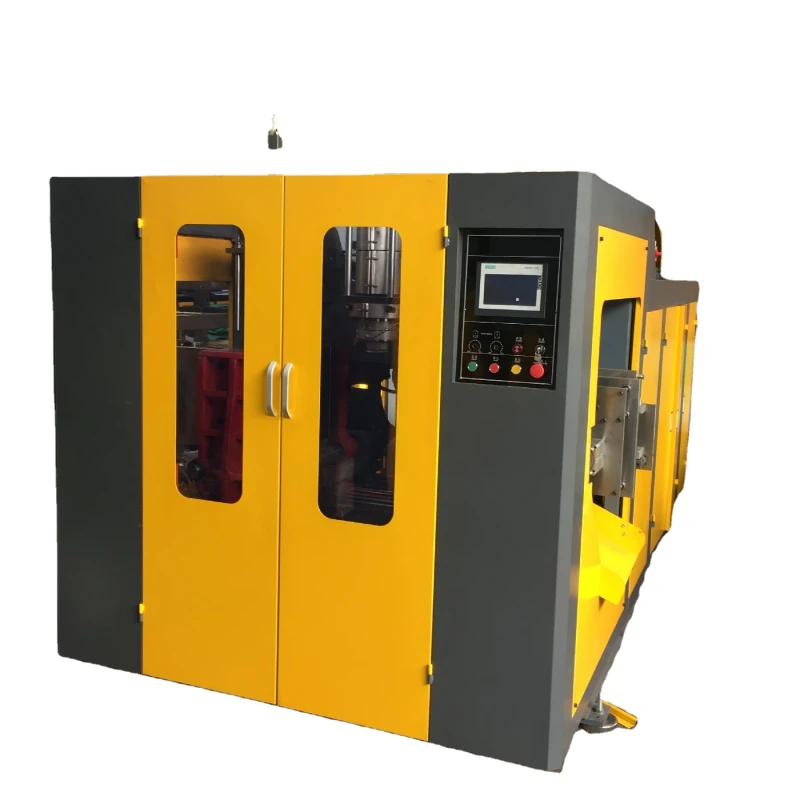

Automatic Plastic Bottles Blow Molding Machine 2L

Automatic Plastic Bottles Blow Molding Machine 2L
  • Automatic Plastic Bottles Blow Molding Machine 2L

    • Automatic Plastic Bottles Blow Molding Machine 2L

    Request a Quote
    plastic processedPE/PPClamping Force (kN)38
    voltage380V/220VautomationAutomatic
    No. of Screw Heating Zone3plc brandSiemens
    core componentsPLC, Gearbox, Motor, Pumpkey selling pointsLong Service Life, Easy To Operate, High Safety Level, Eco-Friendly, Multifunctional, High Rigidity
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)45power (kw)36.3
    weight (t)3.3dimension(l*w*h)2.9x2.1x2.5M
    Screw L/D Ratio24screw diameter (mm)55
    screw heating power(kw)9extruder motor power(kw)15
    mold platen size(width)(mm)290mold platen size(height)(mm)360
    air pressure(mpa)0.6air comsumption(m³/min)0.6
    die head heating power(kw)2Product nameplastic bottles blow molding machine
    Key wordsblow molding machineUseplastic blow molding machine
    Blow Moulding TypeExtrusion Blow MoldingMaterialPP PE HDPE
    Product TypeDie Head Blow Molding MachineSuitable bottle0.1-2L Bottles
    Machine typeHydraulic DrivenProductionHdpe Bottle Making Machine
    StationTwo Station
