Professional Manufacturer of Plastic Processing Machinery

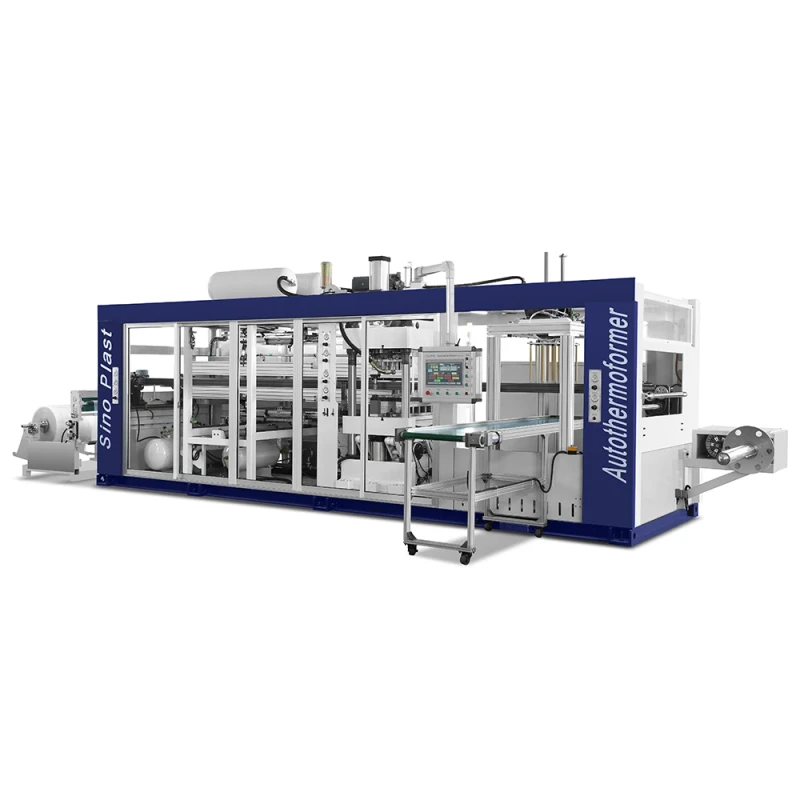

Automatic PVC PP PET Blister Plastic Fruit Tray Cake Box Lunch Container Forming Machine
Automatic PVC PP PET Blister Plastic Fruit Tray Cake Box Lunch Container Forming Machine
| plastic type | PVC, PS, PP, PET | product type | boxes, plates, covers, trays, |
| production speed(cycles/min) | 25.0-45.0cycles/min | voltage | 380V/50HZ Or Customized |
| core components | Engine | machinery test report | Not Available |
| video outgoing-inspection | Not Available | key selling points | Easy to Operate |
| dimension(l*w*h) | 9.5m*2.2m*2.2(L*W*H) | forming width (mm) | 450 |
| forming length (mm) | 780 | weight (t) | 11 |
| max.forming height(mm) | 125 | air pressure(mpa) | 0.8 |
| heating power (kw) | 135 | air comsumption(l/min) | 2500 |
| water comsumption(l/min) | 0.5 | After-sales Service Provided | Engineers available to service machinery overseas |
| Product Name | Automatic Price Thermoforming Machines | Forming Area | Max. 620X420mm |
| Depth of Draw Under Sheet | Max. 120 mm | Depth of Draw Above Sheet | Max. 60mm |
| Suitable Material | PET PS PVC PP | Sheet Width | 460- 640 mm |
| Material Thickness Range | 0.3-1.5mm | Weight | 11 tons |
| Power | 160kw |
