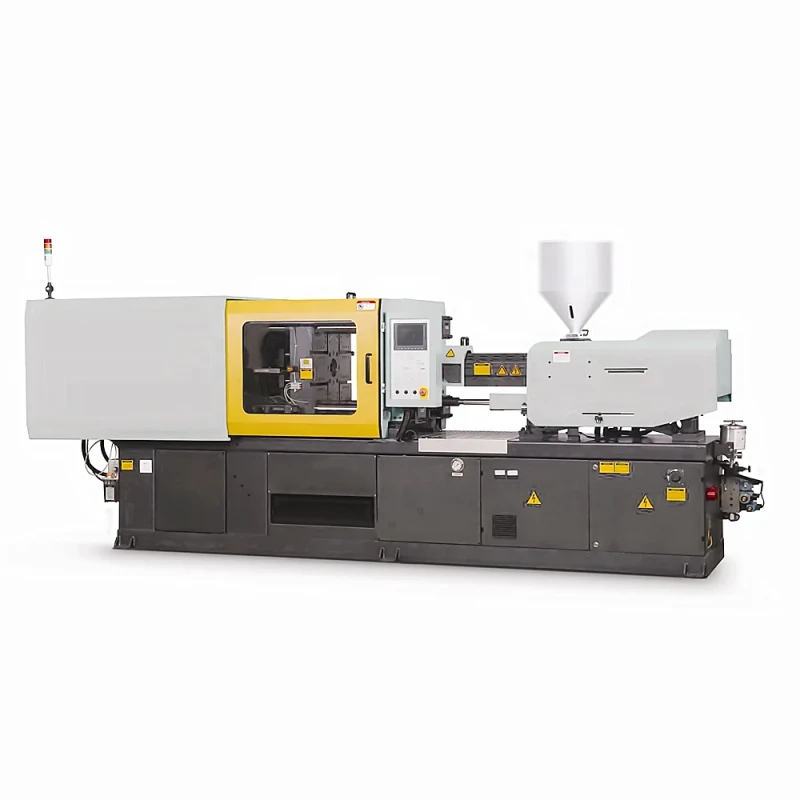

Automatic Small Horizontal Electric Plastic Injection Molding Equipment with PLC and Motor for PE/ABS/HDPE/PP Materials
Automatic Small Horizontal Electric Plastic Injection Molding Equipment with PLC and Motor for PE/ABS/HDPE/PP Materials
| machine type | Hydraulic | distance between tie bars | 110*110 |
| plastic processed | PP, ABS, PVC, HDPE, PE | style | Horizontal |
| key selling points | Automatic | ejector number | 5 |
| core components | Motor, PLC, Gearbox | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 100 |
| injection weight (g) | 40 | injection rate (g/s) | 200 |
| weight (kg) | 100 | power (kw) | 4 |
| ejector stroke(mm) | 30 | ejector force(kn) | 10 |
| theoretical shot volume(cm³) | 40 | screw speed (rpm) | 1 - 220 rpm |
| screw diameter (mm) | 16 | Screw L/D Ratio | 20 |
| open stroke(mm) | 80 | Model | CWQ61160 |
| Swing over bed | 1600mm | Max.swing over cross slide | 1100mm |
| Center distance | 1.5m, 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m | Width of bed | 780mm |
| Metric threads range (kinds) | 44 Kind 1-120mm | Cross feed range (kinds) | 56Kind 0.05-6mm |
| Rapid feed: Long / Cross | 1200mm/min, 1800mm/min | Main motor | 22kw |
| rapid feed motor | 1.5kw |
