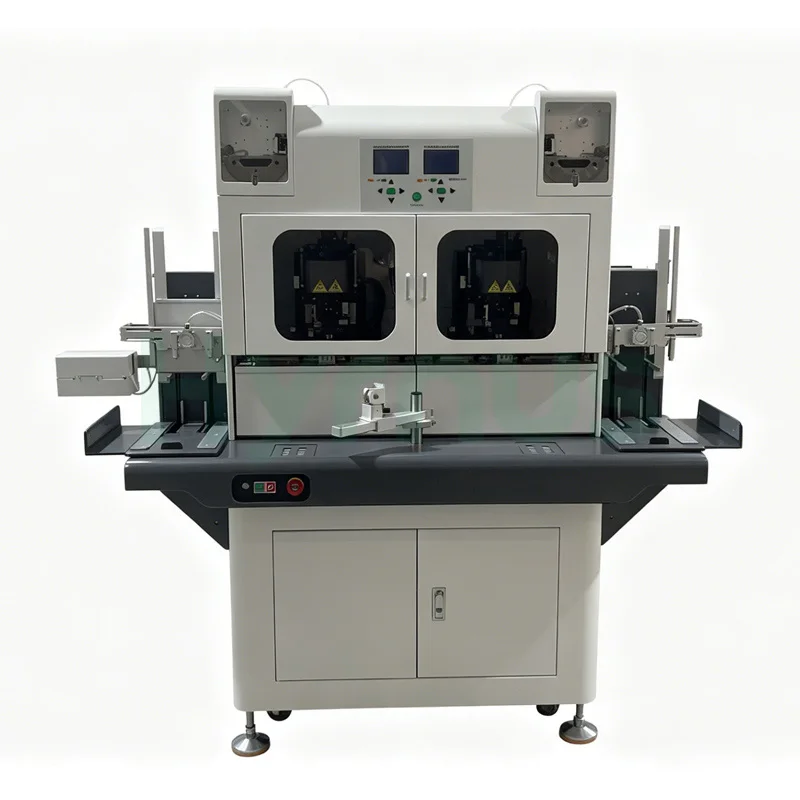

Automatic Ultrasonic Heavy Aluminum 5 20mil Wire Wedge Bonder with Dual bonding Head System
Automatic Ultrasonic Heavy Aluminum 5 20mil Wire Wedge Bonder with Dual bonding Head System
| Machine Type | Wire Wedge Bonder | Voltage | 220 V |
| video outgoing-inspection | Provided | Weight (KG) | 550 |
| Product Name | Wire Wedge Bonder | Item | HY-HW3850 |
| Bondable Aluminum Wire Diameter | 125~500μm (5~20mil) | Operating Air Pressure | 4~6 kg/cm² |
| Bonding Angle | -90° ~ 90° | Ultrasonic Power | 0~30W |
| Bonding Force | 30~1200g | Bonding Time | 1~1000ms |
| UPH | 2.2~2.7K/h (TO-220 double wire) | Power Consumption | Max. 1200W |
