Professional Manufacturer of Plastic Processing Machinery

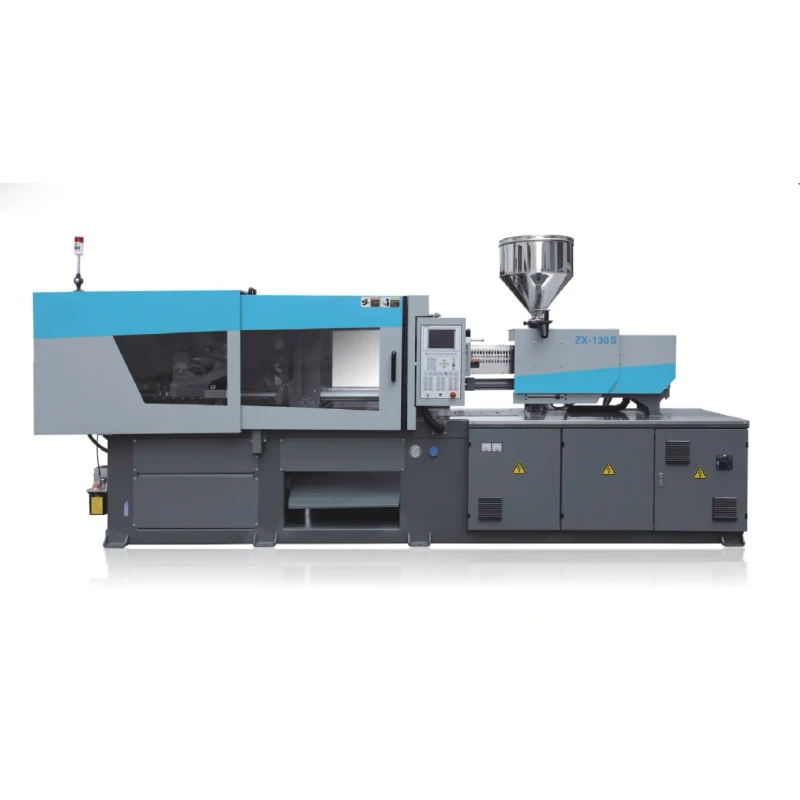

Big Manufacturer High Speed Preform Injection Horizontal PET Injection Molding Machine with PLC
Big Manufacturer High Speed Preform Injection Horizontal PET Injection Molding Machine with PLC
| machine type | Hybrid | distance between tie bars | 545x545 mm |
| plastic processed | PET | style | Horizontal |
| key selling points | Flexible Manufacturing | ejector number | Other |
| core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 40 |
| injection weight (g) | 1010 | injection rate (g/s) | 420 |
| weight (kg) | 7500 | power (kw) | 17.5 |
| mold height(mm) | 180 - 560 mm | ejector stroke(mm) | 160 |
| ejector force(kn) | 90 | theoretical shot volume(cm³) | 778 |
| screw speed (rpm) | 50 - 157 rpm | screw diameter (mm) | 60 |
| Screw L/D Ratio | 25 | open stroke(mm) | 520 |
| Product name | Injection Molding Machine | Application | Making Preform |
| Machine Dimensions | 5.6m x 1.3m x 2.0m | After-sales Service Provided | Field installation, commissioning and training |
| After Warranty Service | Video technical support | Marketing Type | New Product 2025 |
| Certification | CE | Local Service Location | None |
| Type | Preform Injection | Warranty of core components | 1 Year |
