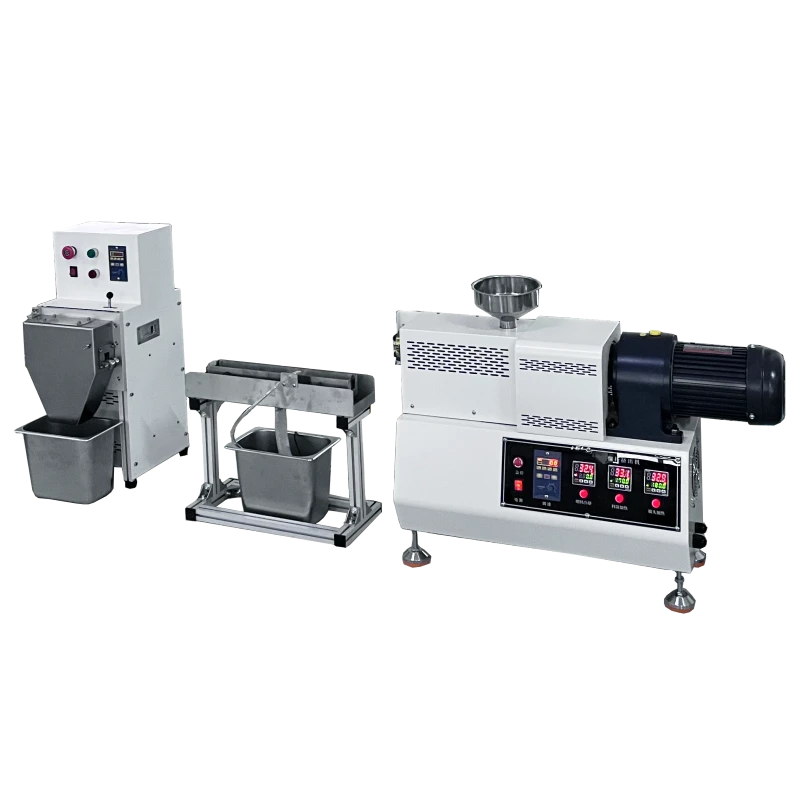

CE Certified Intelligent Twin Screw Extruder Granulator for Medical Grade CPVC LDPE ASA HDPE PS PU EPS ABS Pelletizing

CE Certified Intelligent Twin Screw Extruder Granulator for Medical Grade CPVC LDPE ASA HDPE PS PU EPS ABS Pelletizing
  • CE Certified Intelligent Twin Screw Extruder Granulator for Medical Grade CPVC LDPE ASA HDPE PS PU EPS ABS Pelletizing

    • CE Certified Intelligent Twin Screw Extruder Granulator for Medical Grade CPVC LDPE ASA HDPE PS PU EPS ABS Pelletizing

    Request a Quote
    applicationPelletizing, Film, Pipe, Sheetextruder typetwin screw
    screw diameter (mm)16voltage220 V
    Screw L/D Ratio16:1Screw Material38CrMoALA
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsscrew, barrel, drive system, heating and cooling system, control systemScrew DesignDouble-screw
    Screw Speed (rpm)50Weight (KG)100
    dimension(l*w*h)650mm*300mm*500mmpower (kw)2
    Screw diameter16mmDesign output0.1-1.5KG/h
    Machine dimensions L*W*H640mm*300mm*550mmweight45kg
    Extrusion center height300mmExtrusion directionRight Left exit
    Motor power370wvoltage220V 50HZ
    LD21:1heating temperatureRT-350℃
