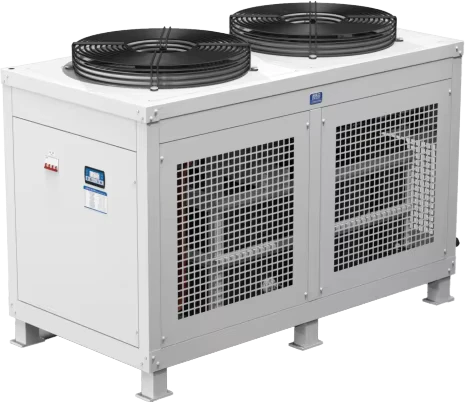

CE Standard 5HP 380V R-32 Refrigerant Energy Saving Eco-Friendly Plastic Processing Chiller Water Cooled Turbopump High Accuracy

CE Standard 5HP 380V R-32 Refrigerant Energy Saving Eco-Friendly Plastic Processing Chiller Water Cooled Turbopump High Accuracy
  • CE Standard 5HP 380V R-32 Refrigerant Energy Saving Eco-Friendly Plastic Processing Chiller Water Cooled Turbopump High Accuracy

    • CE Standard 5HP 380V R-32 Refrigerant Energy Saving Eco-Friendly Plastic Processing Chiller Water Cooled Turbopump High Accuracy

    Request a Quote
    voltage380 Vpower6KW
    RefrigerantR-32compressor brandother
    Pump TypeTurbopumpmachinery test reportProvided
    video outgoing-inspectionProvidedPlug TypeALL
    core componentsBearing, Motor, PumpContainer Volume38L
    Weight (KG)90dimension(l*w*h)665mm*610mm*990mm
    working temperature range5-40℃Voltage & Frequency380V/AC±10% 50Hz/60Hz
    Rated flow of water pump60L/minPump power0.75kW
    Cooling capacity13.6kWcurrent9.1A
    Max.power consumption6kWTempe. control accuracy±1℃
    Nominal horsepower5HPMax.pump lift45m
    Compressor rated power3.64kW
