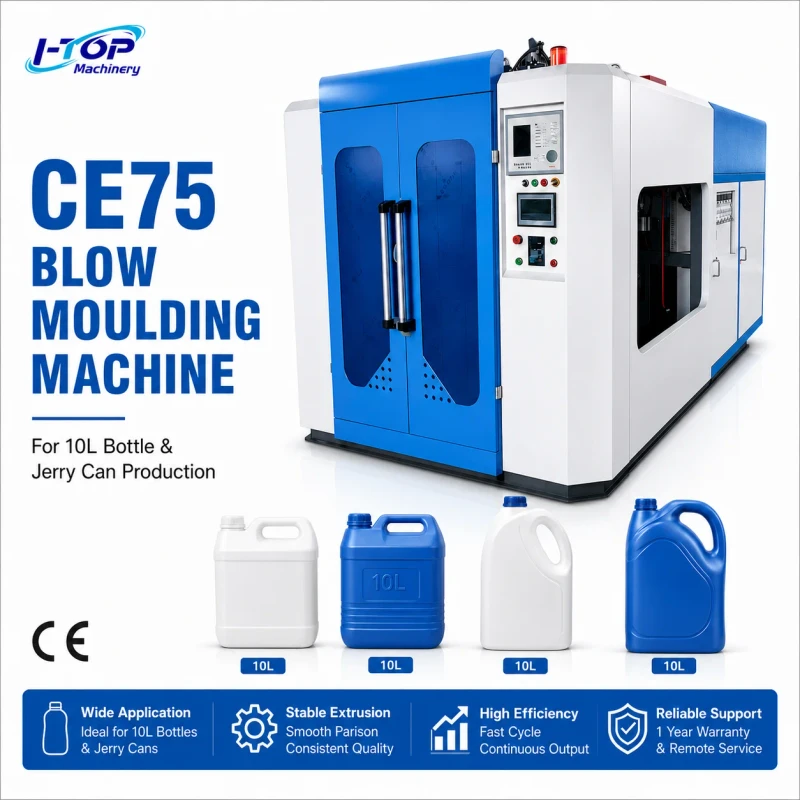

CE75 HDPE Bottle Blow Molding Machine for 10L Plastic Containers

CE75 HDPE Bottle Blow Molding Machine for 10L Plastic Containers
  • CE75 HDPE Bottle Blow Molding Machine for 10L Plastic Containers

    • CE75 HDPE Bottle Blow Molding Machine for 10L Plastic Containers

    Request a Quote
    plastic processedPP, HDPE, PETG, PVCClamping Force (kN)70
    voltage380 VautomationAutomatic
    No. of Screw Heating Zone8plc brandMitsubishi
    core componentsPLC, Engine, Motor, Pressure Vessel, Pumpkey selling pointsLong Service Life, Easy To Operate, Multifunctional, High Productivity, Energy Saving, Low Maintenance Cost, Multilayer
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)75power (kw)40
    weight (t)4dimension(l*w*h)3700x2200x2500
    Screw L/D Ratio25screw diameter (mm)75
    screw heating power(kw)13extruder motor power(kw)15
    mold platen size(width)(mm)370mold platen size(height)(mm)460
    air pressure(mpa)0.8air comsumption(m³/min)0.5
    die head heating power(kw)8ApplicationPlastic Bottles, Jerry Cans and Small Chemical Containers
    Mode TypeContinuous Extrusion Blow MoldingMold CustomizationCustom Mold Design Supported
    Changeover FlexibilityFast Mold & Product ChangeoverControl Precision LevelStable Wall Thickness & Weight Consistency
    MaintenanceEasy Maintenance with Standard ComponentsOperation RequirementOne-Operator Automatic Production
    OptionLiquid Level Line System, Wall Thickness Controller, Servo MotorTarget BuyerPlastic Packaging Manufacturers / OEM Factories
