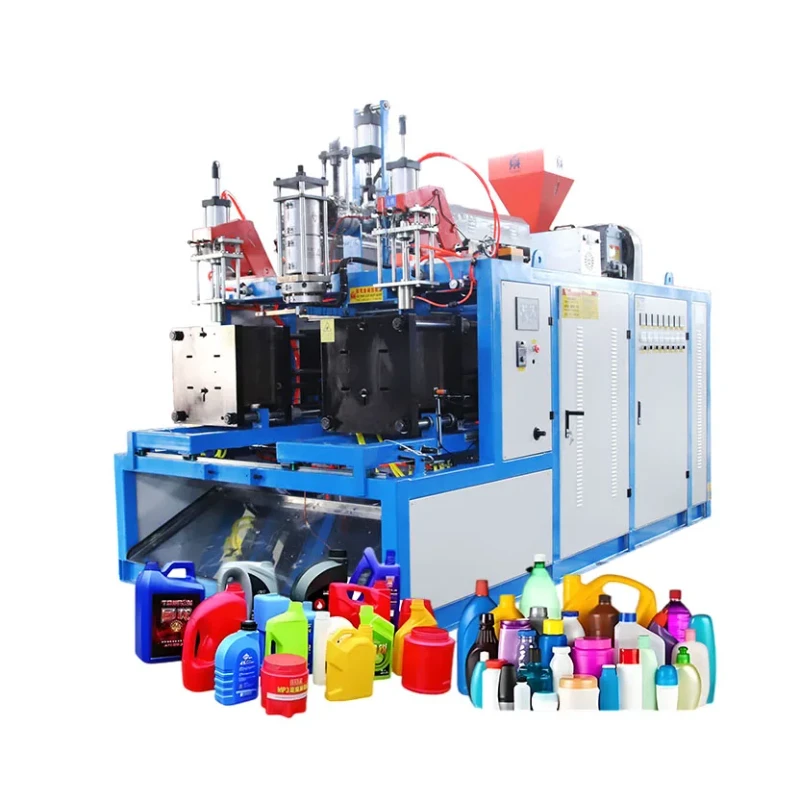

Chemical HDPE Bottles Making Machine Shampoo Bottle Extrusion Blowing Machine
Chemical HDPE Bottles Making Machine Shampoo Bottle Extrusion Blowing Machine
| plastic processed | PP, HDPE | Clamping Force (kN) | 25 |
| voltage | 380v | automation | Semi-Automatic |
| No. of Screw Heating Zone | 7 | core components | PLC, Gearbox, Motor, Pump |
| key selling points | Long Service Life, High Safety Level, High Rigidity | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 25 |
| power (kw) | 22 | weight (t) | 2.5 |
| dimension(l*w*h) | 3*1.8*2.2 | Screw L/D Ratio | 25 |
| screw diameter (mm) | 65 | screw heating power(kw) | 11 |
| extruder motor power(kw) | 11 | mold platen size(width)(mm) | 450 |
| mold platen size(height)(mm) | 400 | air pressure(mpa) | 0.6 |
| air comsumption(m³/min) | 0.5 | die head heating power(kw) | 11 |
| Color | Blue | Type | Semi-auto |
| Bottle material | Pp Pc | Material | PP PC |
| Customer's requipment | Customized Designed | After-sales Service Provided | 1year |
| Use | Blow Bottle | Name | Semi-Automatic PP Bottle |
| Material application | PP PE | Bottle Volume(ml) | 2000 |
