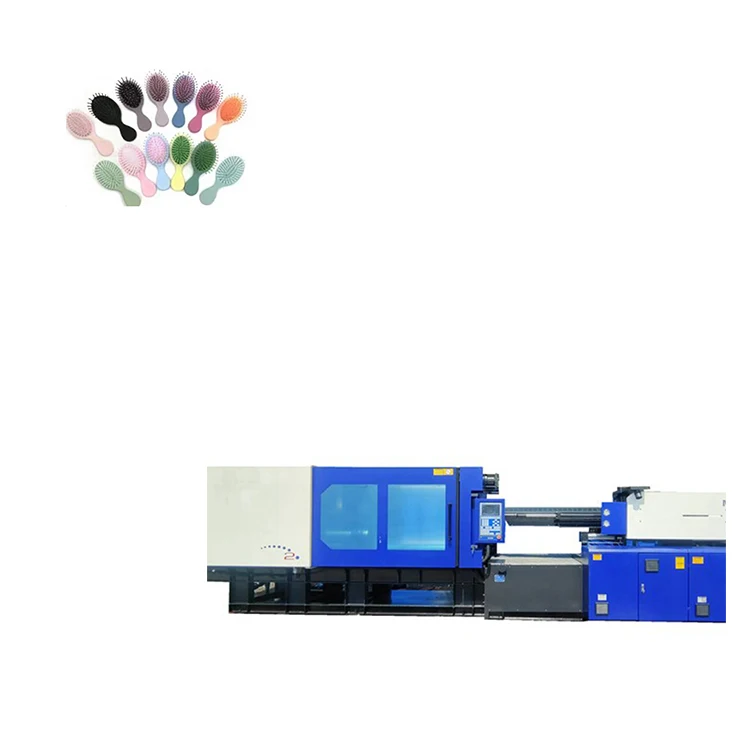

CNC Horizontal Liquid Silicone Vertical Plastic Injection Molding Machine
CNC Horizontal Liquid Silicone Vertical Plastic Injection Molding Machine
| machine type | Hybrid, Hydraulic, Electric, Other | distance between tie bars | 620x620 mm |
| style | Horizontal | key selling points | High-Accuracy |
| ejector number | 110 | core components | Motor, PLC, Other, Pressure Vessel, Engine, Gearbox |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 77.2 | injection weight (g) | 2143 g |
| injection rate (g/s) | 604 g/s | weight (kg) | 19000 kg |
| power (kw) | 29.45 kW | mold height(mm) | 330 - 780 mm |
| ejector stroke(mm) | 200 mm | ejector force(kn) | 110 kN |
| theoretical shot volume(cm³) | 2355 cm³ | screw speed (rpm) | 0 - 170 rpm |
| screw diameter (mm) | 90 mm | Screw L/D Ratio | 17.9 |
| open stroke(mm) | 740 mm | Machine Dimension(L x W x H) | 7.95X2.05X2.7 |
| Machine Weight | 18.8T | Hopper Capacity | 100 |
| Pump Motor Power | 45 | Max. Pump Pressure | 16 |
| Clamp Tonnage | 4700 | Oil Tank Capacity | 850L |
| Screw Speed | 170 | Injection Weight (PS) | 2143 |
| Shot Size (Theoretical) | 2355 |
