Professional Manufacturer of Plastic Processing Machinery

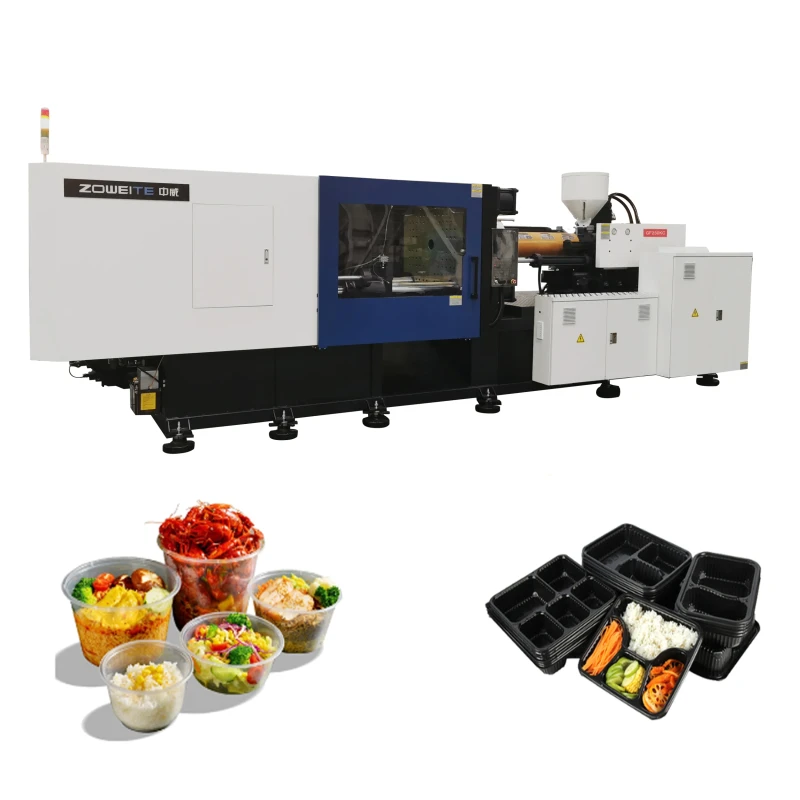

Customized Aluminum Foil Square Food Machine Plastic Food Container Injection Molding Machine
Customized Aluminum Foil Square Food Machine Plastic Food Container Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 580*530mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Stable performance | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 464 g | injection rate (g/s) | 378 g/s |
| weight (kg) | 8000 kg | power (kw) | 40 kW |
| mold height(mm) | 220 - 600 mm | ejector stroke(mm) | 125 mm |
| ejector force(kn) | 67 kN | theoretical shot volume(cm³) | 510 cm³ |
| screw speed (rpm) | 0 - 310 rpm | screw diameter (mm) | 50 mm |
| open stroke(mm) | 520 mm | Product name | Injection Molding Machine |
| Model | GF230KC | Function | plastic parts production |
| Application | Inserting Plastic Products | Motor | Servo Energy Saving |
| Machine Dimensions(mm) | 5800*1550*2000 | Machine Color | white+blue |
| Advantage | energy saving | stable performance | short cycle time |
