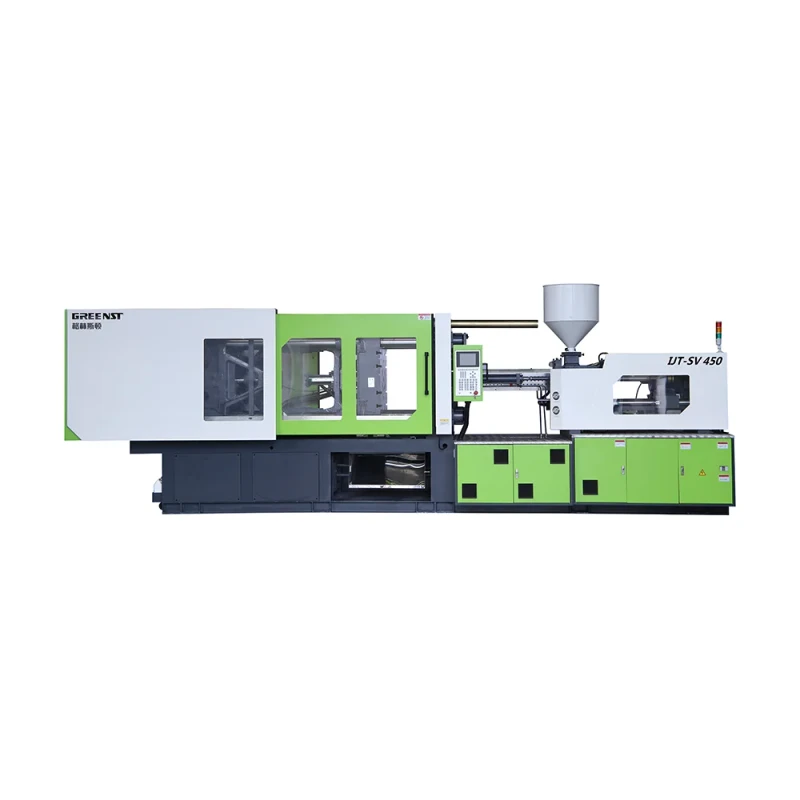

Customized Mini Desktop Horizontal Electric Hydraulic Injection Molding Machine Screw Diameter 75mm 1567g Injection Weight 1
Customized Mini Desktop Horizontal Electric Hydraulic Injection Molding Machine Screw Diameter 75mm 1567g Injection Weight 1
| machine type | Hydraulic, Electric | distance between tie bars | 760*760mm |
| plastic processed | PP, Silicon, PC, ABS, PET, FRPP/PVC, PVC | style | Horizontal |
| key selling points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly | ejector number | 13 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 84 |
| injection weight (g) | 1567 | injection rate (g/s) | 480 |
| weight (kg) | 18000 | power (kw) | 32.9 |
| mold height(mm) | 300 - 800 | ejector stroke(mm) | 200 |
| ejector force(kn) | 110 | theoretical shot volume(cm³) | 1723 |
| screw speed (rpm) | 0 - 195 | screw diameter (mm) | 75 |
| Screw L/D Ratio | 22 | open stroke(mm) | 760 |
| color | white and green | Power supply monitored | Included |
| USB conect | Included | Ejector platen safety device | Included |
| Closed loop PID termperature control | Included | Mold temperature control . | Included |
| screen | color LCD | Open nozzle with nozzle head | Included |
| Hopper with cover, approx. | Included | type | injection machine |
