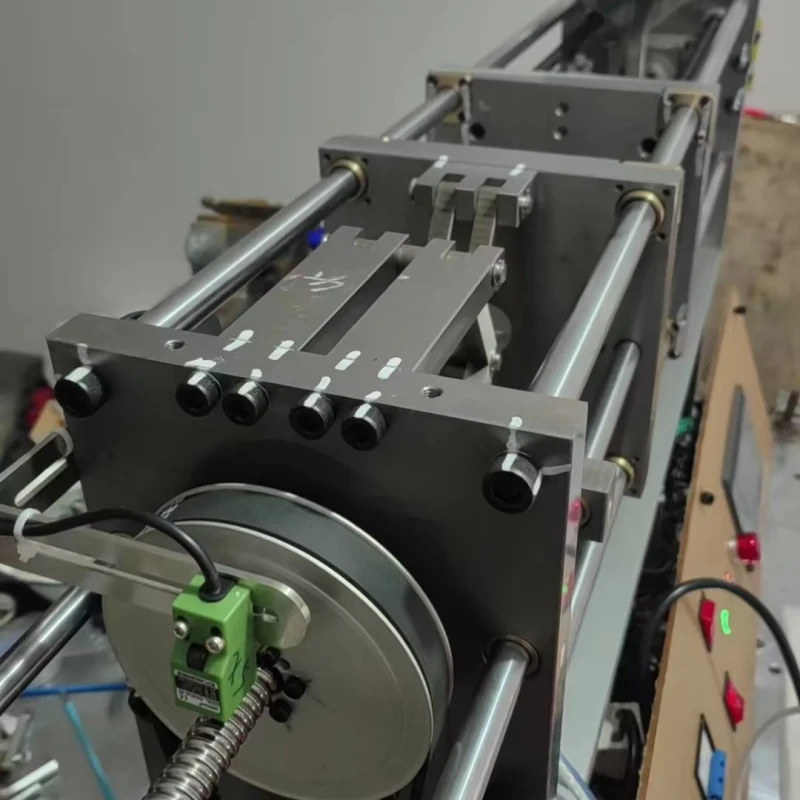

Customized Mini Desktop Horizontal Injection Molding Machine for Power Switch Plug Plastic Molding Machine
Customized Mini Desktop Horizontal Injection Molding Machine for Power Switch Plug Plastic Molding Machine
| machine type | Mechanical | distance between tie bars | 130*130 |
| plastic processed | PP, ABS, PVC | style | Horizontal |
| key selling points | High Productivity | ejector number | 30 |
| core components | Bearing | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 10 |
| injection weight (g) | 30 | injection rate (g/s) | 55 |
| weight (kg) | 34 | power (kw) | 2 |
| mold height(mm) | 50 - 150 | ejector stroke(mm) | 20 |
| ejector force(kn) | 2 | theoretical shot volume(cm³) | 40 |
| screw speed (rpm) | 0 - 100 | screw diameter (mm) | 20 |
| Screw L/D Ratio | 330 | open stroke(mm) | 95 |
| Heating temperature | 0-350 degrees | Injection speed | 1- 99 seconds |
| Condition | New | Applicable Industries | Manufacturing Plant |
| Showroom Location | None | Warranty of core components | 1 Year |
