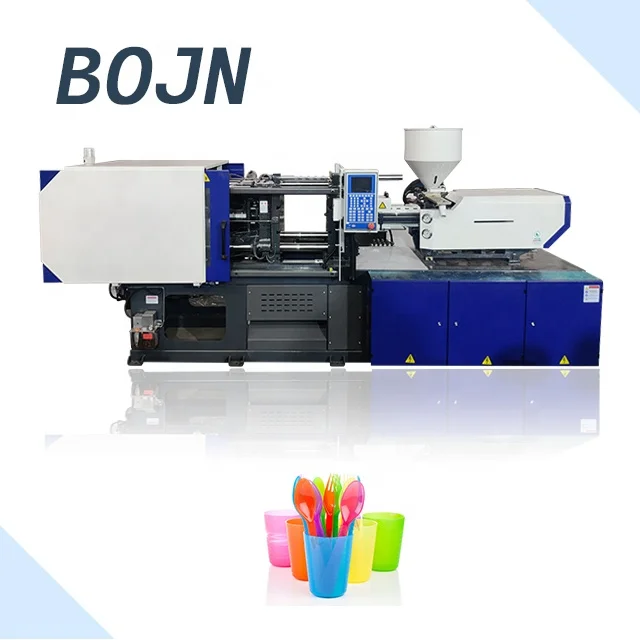

Desktop Mini Injection Machine 108Ton Small Injection Molding Machine for Plastic Cups Cutlery
Desktop Mini Injection Machine 108Ton Small Injection Molding Machine for Plastic Cups Cutlery
| machine type | Hydraulic | distance between tie bars | 360x360mm |
| plastic processed | PP, PC, ABS, PVC, HDPE, PA, PE, LDPE, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | High Productivity | ejector number | 5 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 10.4/12/12.8 |
| injection weight (g) | 155 g | injection rate (g/s) | 164 g/s |
| weight (kg) | 2900 kg | power (kw) | 11 kW |
| mold height(mm) | 100 - 400 mm | ejector stroke(mm) | 100 mm |
| ejector force(kn) | 27 kN | theoretical shot volume(cm³) | 173 cm³ |
| screw speed (rpm) | 0 - 220 rpm | screw diameter (mm) | 35 mm |
| Screw L/D Ratio | 21.2 | open stroke(mm) | 325 mm |
| Product name | Plastic Injection Moulding Machine | After-sales Service Provided | 2 Year |
| Applicable materials | PS PE PP PVC ABS etc. | Function | Making Plastics Parts |
| Application | Inserting Plastic Products | Keyword | Plastic Machinery Equipment |
| Model | BJ-108T |
