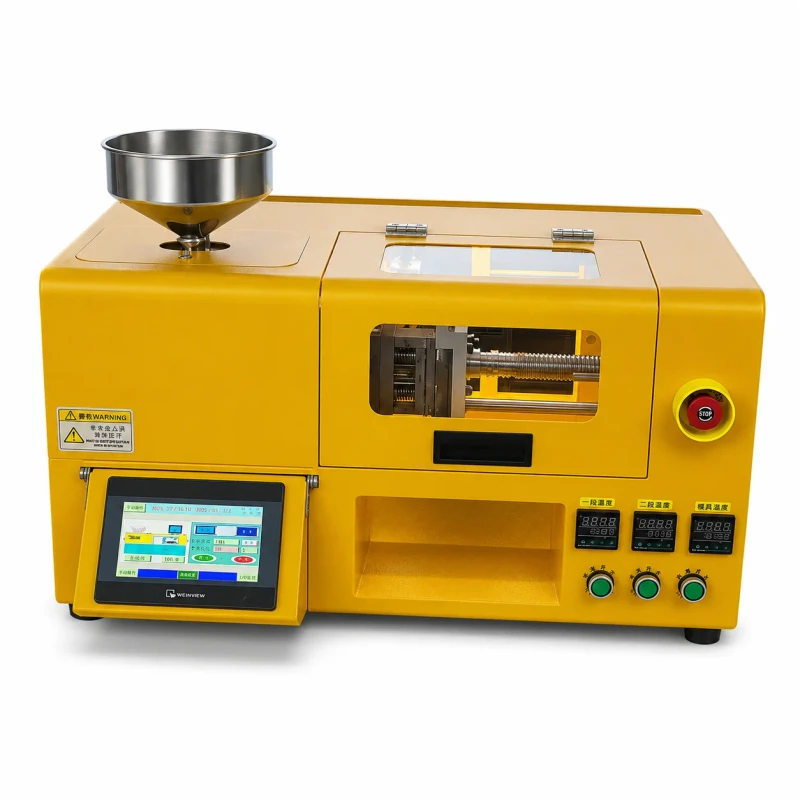

Desktop Mini Plastic Injection Molding Machine Benchtop Small Injection Machine for Prototype and Small Batch Production

Desktop Mini Plastic Injection Molding Machine Benchtop Small Injection Machine for Prototype and Small Batch Production
  • Desktop Mini Plastic Injection Molding Machine Benchtop Small Injection Machine for Prototype and Small Batch Production

    • Desktop Mini Plastic Injection Molding Machine Benchtop Small Injection Machine for Prototype and Small Batch Production

    Request a Quote
    machine typeElectricdistance between tie barscustom
    plastic processedPP, PC, ABS, PET, PVCstyleHorizontal
    key selling pointsAutomatic, Multifunctionalejector numberother
    core componentsPLC, Motor, Enginevideo outgoing-inspectionProvided
    plasticizing capacity(g/s)20injection weight (g)20
    injection rate (g/s)35weight (kg)60
    power (kw)1.5mold height(mm)0 - 100
    ejector stroke(mm)25ejector force(kn)20
    theoretical shot volume(cm³)6.72screw speed (rpm)1 - 200
    screw diameter (mm)25open stroke(mm)150
    Control ModeIntelligent PLC Touch ScreenHeating SystemMulti-stage PID Temperature Control
    ApplicationPrecision Laboratory / Small Batch ProductionSafety FeatureEmergency Stop & Overload Protection
    InstallationDesktop / Portable DesignMaterial CompatibilityABS, PP, PE, PS, PC, etc.
    Max Temperature350°CInjection PressureHigh Pressure Stability
    Cooling SystemFan/Water Cooling SupportColorcustom
