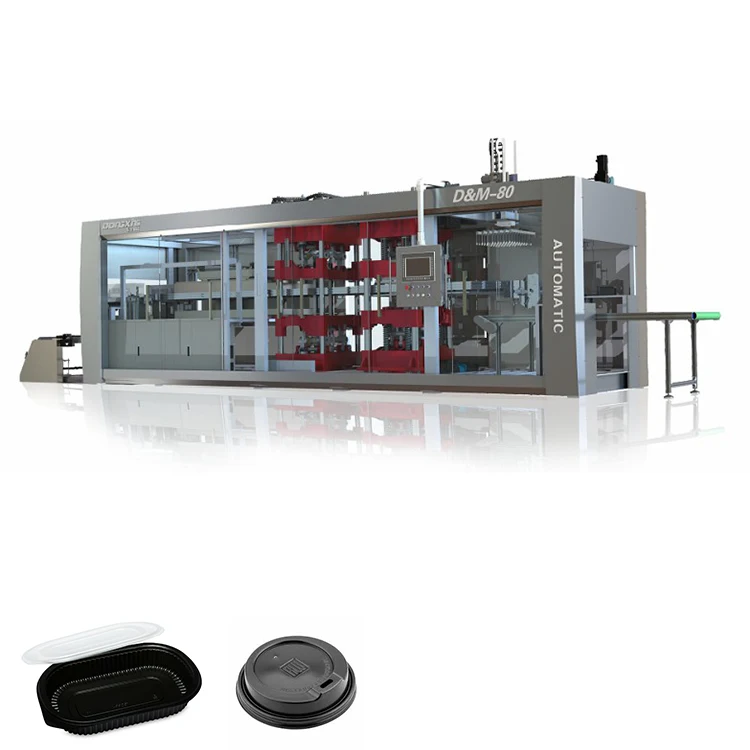

DM4 80 4 Station Automatic PET Plastic Packaging Tray Container Thermoforming Machine
DM4 80 4 Station Automatic PET Plastic Packaging Tray Container Thermoforming Machine
| plastic type | PS, BOPS, PP, BOPP, EPS, PET | product type | Fast Food Box |
| production speed(cycles/min) | 30.0cycles/min | voltage | 220V/380V/415V |
| core components | PLC, Engine, Motor, Pressure Vessel, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | High Productivity |
| dimension(l*w*h) | 12000*2800*2600mm | forming width (mm) | 720 |
| forming length (mm) | 800 | weight (t) | 14 |
| max.forming height(mm) | 150 | air pressure(mpa) | 0.7 |
| sheet thickness(mm) | 0.15 - 0.2 mm | heating power (kw) | 25 |
| air comsumption(l/min) | 2000 | water comsumption(l/min) | 60 |
| Product name | 4 station plastic thermoforming machine | Suitable material | PP PS PET polyvinyl chloride/plastic blister packaging/plastic lid |
| Forming speed | 12-18 Stroke/minute | Sheet length(mm) | 500-900 |
| Max Roll Sheet(mm) | 600 | Circuit | Japan Fuji |
| Four station | Forming-cutting-punching-stacking |
