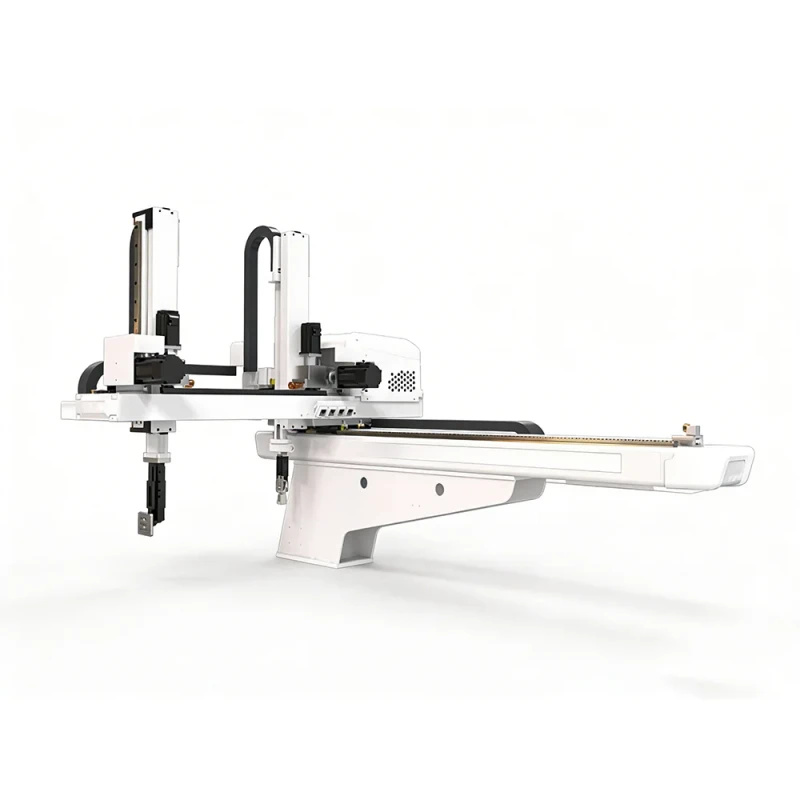

Double Z 5 Axis Servo Injection Robot High Speed Precision Pick Place for Automated Injection Molding Production
Double Z 5 Axis Servo Injection Robot High Speed Precision Pick Place for Automated Injection Molding Production
| Horizonal Travel(mm) | 1300mm | Condition | New |
| Vertical Travel(mm) | 750mm | Dimension(L*W*H) | No parameters |
| Weight | 230kg | Power capacity (kVA) | 3.32 |
| Applicable molding machine (ton) | 50T-200T | Fixture type | AC servo motor |
| Pull stroke (mm) | P:370-R:370 | Maximum load (kg) | 3 |
| Withdrawal time (sec) | 1.32 | Full cycle time (sec) | 4.95 |
| Air consumption (NI/cycle) | 4 | Positioning accuracy (mm) | ±0.05 |
