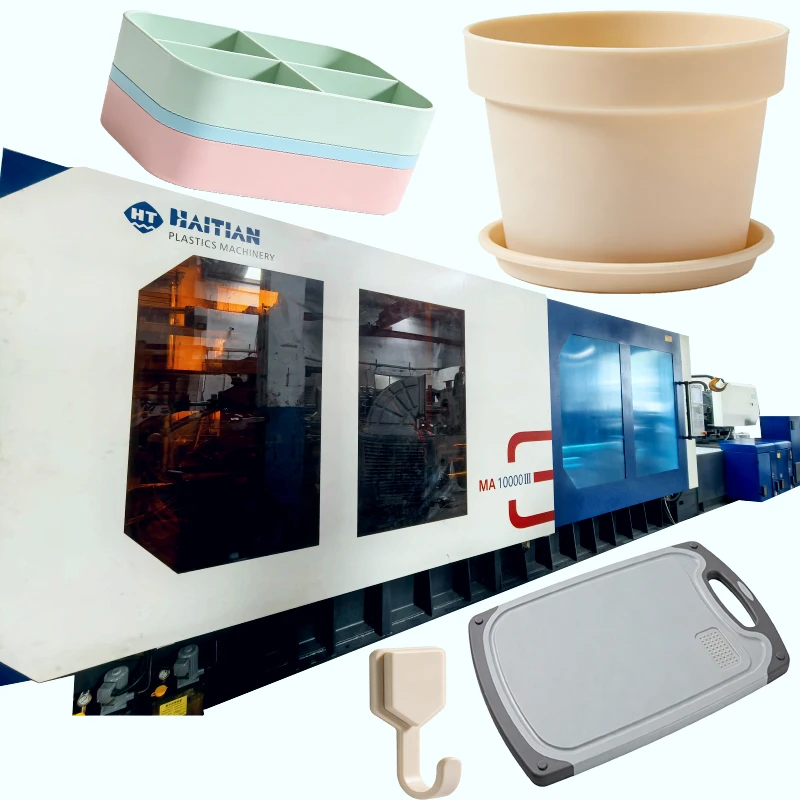

Durable Hybrid 1000 Ton Haitian Injection Machine With PLC Gear Screw & Pump For Large Plastic Water Tanks & Storage Containers

Durable Hybrid 1000 Ton Haitian Injection Machine With PLC Gear Screw & Pump For Large Plastic Water Tanks & Storage Containers
  • Durable Hybrid 1000 Ton Haitian Injection Machine With PLC Gear Screw & Pump For Large Plastic Water Tanks & Storage Containers

    • Durable Hybrid 1000 Ton Haitian Injection Machine With PLC Gear Screw & Pump For Large Plastic Water Tanks & Storage Containers

    Request a Quote
    machine typeHybridstyleHorizontal
    core componentsPressure Vessel, Motor, Bearing, Pump, Screw, PLC, Gear, Gearbox, Enginemachinery test reportNot Available
    video outgoing-inspectionProvidedplasticizing capacity(g/s)115.5
    injection weight (g)4151injection rate (g/s)850
    weight (kg)47500power (kw)68.75
    mold height(mm)500 - 1100ejector stroke(mm)320
    ejector force(kn)215theoretical shot volume(cm³)4562
    screw diameter (mm)110Screw L/D Ratio22
    open stroke(mm)1100Space Between Tie Bars1090*1090
    Machine Dimension(L*W*H)11.4*2.68*2.81
