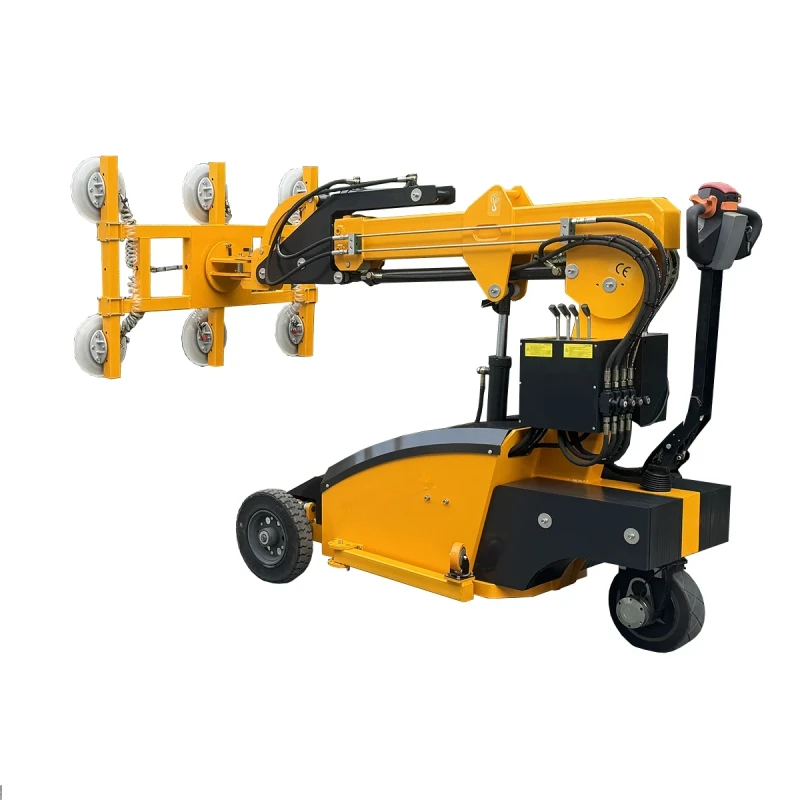

Electric 400kg Glass Installation Robot Truck Battery Powered Vacuum Lifter 3m Lifting Height for Glass Handling
Electric 400kg Glass Installation Robot Truck Battery Powered Vacuum Lifter 3m Lifting Height for Glass Handling
| Load Capacity | 400 kg | Compatible Material Type | Glass, Metal, Plastic |
| Power Source | Battery | Working Pressure | 0.05 MPa-0.1 MPa |
| maximal lifting height | 3m | Pad Type | Standard |
| Controls | Remote Control, Manual Control | Release mechanism | Release Valve |
| Load Movement | 90° Tilt, Manual 360° Rotation, Horizontal | Rotation Angle | 360° |
| Operating temperature range | -20℃~80℃ | Suction Force | 3 000 N |
| Additional Function | Reverse Check Valve/Vacuum Retention, Mechanical Pressure Switch For Vacuum, Filter, Silencers | Air Consumption | 10 l/min |
| Voltage | 24 V | Number of pads | 4 |
| Flange Size Nominal | / | Thread Dimension | 1/4 in |
| Suction Flow(l/min) | 5 | Bag handle | D-Handle |
| Pad Shape | / | Application of Vacuum Lifters | Standard |
| Condition | New | Wave Height | / |
| Cantilever Length | 2000 mm | Flange Type | / |
| Flange Shape | Standard | number of suction cups | 4 |
| Single Suction Cup Size | 200x300 mm | pad size | 20 mm |
| Pad Diameter | / | Minimum Bending Radius | / |
| Working Temperature | 20°C-80°C | viscosity grade | / |
| Viscosity index | / | Tensile Strength | / |
| Center Ring Type | / | Power | 1500 W |
| Feature | Durable, Strong Suction, Vacuum Suction, Reusable | Weight (KG) | 200 |
| Dimension(L*W*H) | 2200*1200*1800mm |
