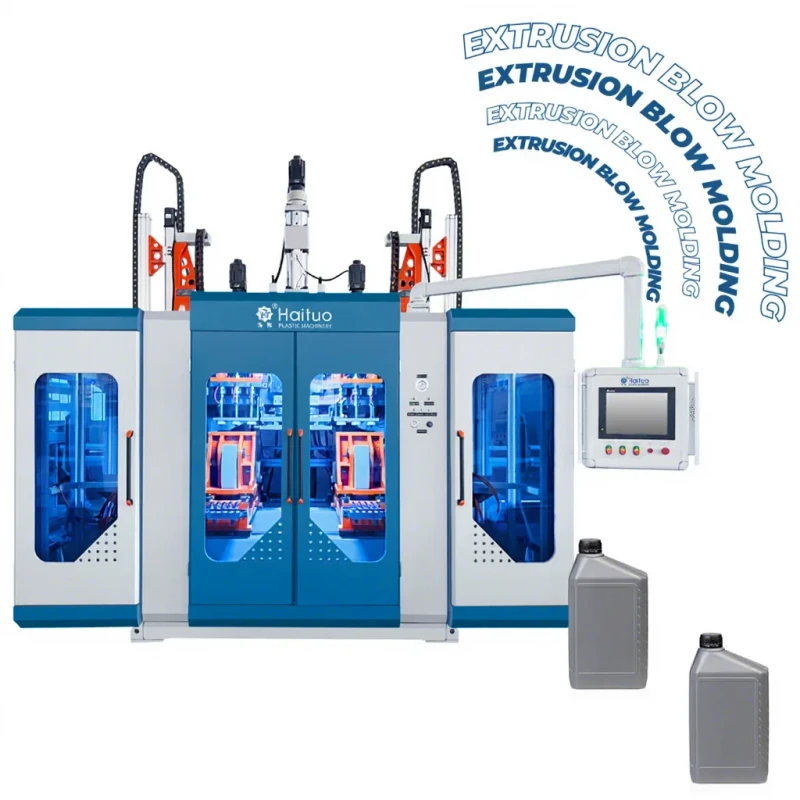

Electric Automatic Extrusion Blow Molding Machine with Bearing & Engine for 250ml-1L HDPE Lubricant Oil Bottle Production
Electric Automatic Extrusion Blow Molding Machine with Bearing & Engine for 250ml-1L HDPE Lubricant Oil Bottle Production
| plastic processed | PP, HDPE, PE, ABS/PP, HDPE/PP, PS, ABS | Clamping Force (kN) | 120 |
| voltage | 220 V, 440 V, 415 V, 380 V | automation | Automatic |
| No. of Screw Heating Zone | 2 - 5 | plc brand | Siemens |
| core components | PLC, Engine, Motor, Pressure Vessel, Gearbox, Bearing | key selling points | Long Service Life, Easy To Operate, High Safety Level, Competitive Price |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 120 | power (kw) | 85 |
| weight (t) | 10 | dimension(l*w*h) | 4500*3000*2600 m |
| Screw L/D Ratio | 25 | screw diameter (mm) | 80 |
| screw heating power(kw) | 4 | extruder motor power(kw) | 30 |
| mold platen size(width)(mm) | 500 | mold platen size(height)(mm) | 470 |
| air pressure(mpa) | 0.6 | air comsumption(m³/min) | 0.5 |
| die head heating power(kw) | 8 |
