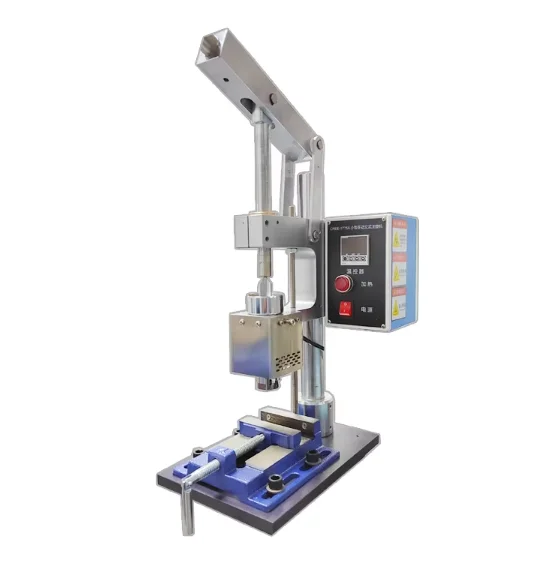

Electric Vertical Hand Injection Press Bench Top Mini Injection Molder Machine with Screw for HDPE PC PA Materials
Electric Vertical Hand Injection Press Bench Top Mini Injection Molder Machine with Screw for HDPE PC PA Materials
| machine type | Electric | distance between tie bars | 110*110 |
| plastic processed | HDPE, LDPE, PE/PP, PA, PC | style | VERTICAL |
| key selling points | Easy To Operate | ejector number | 2 |
| core components | Pressure Vessel, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | plastic |
| plasticizing capacity(g/s) | 5 | injection weight (g) | 20 |
| injection rate (g/s) | 5 | weight (kg) | 35 |
| power (kw) | 0.4 | mold height(mm) | 0.5 - 3 mm |
| ejector stroke(mm) | 135 | ejector force(kn) | 35 |
| theoretical shot volume(cm³) | 7 | screw speed (rpm) | 10 - 60 rpm |
| screw diameter (mm) | 20 | Screw L/D Ratio | 20 |
| open stroke(mm) | 135 | Temperature range | RT~300 ℃ (± 3 ℃) |
| Piston diameter | 20mm | Maximum compression stroke | 135mm |
| Heating chamber size | 20 * 70mm | Maximum injection volume | 20cm3 (20g) |
| Maximum size of mold | 120 * 120 * 80mm | Machine weight | 35kg |
| Power supply | 500W | Voltage | 220V/110V,50/60HZ |
