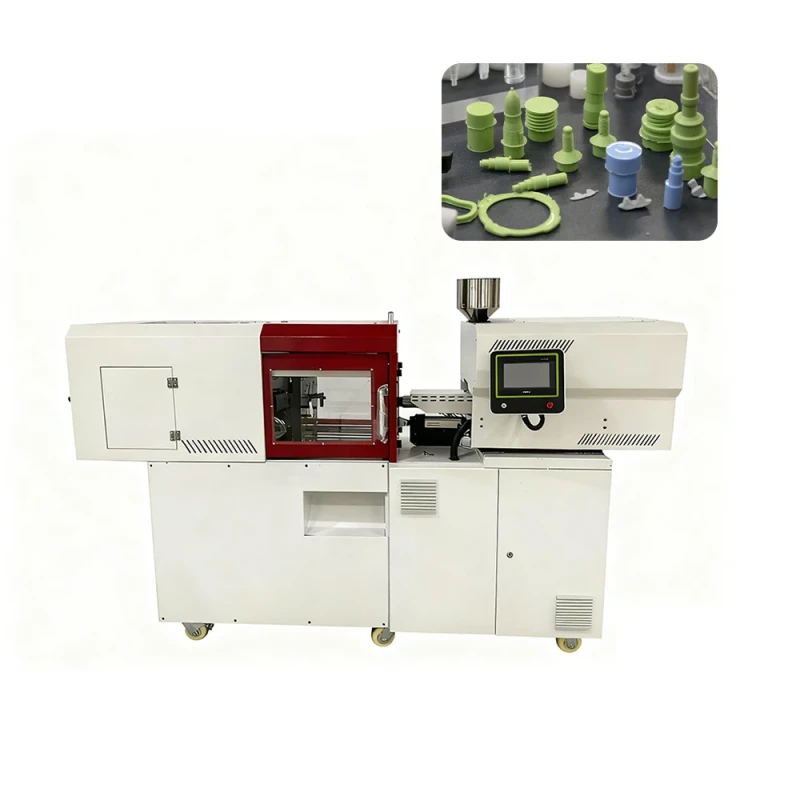

Electronic Molding Machine High efficiency Injection Machine Mini Electric Model for 10T Electronic Plastic Molding Plant
Electronic Molding Machine High efficiency Injection Machine Mini Electric Model for 10T Electronic Plastic Molding Plant
| plastic processed | PP, PET, PVC, FRPP/PVC | style | Horizontal |
| core components | Bearing, Motor, Pump, PLC, Pressure Vessel | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 5 |
| injection weight (g) | 5 | injection rate (g/s) | 5 |
| weight (kg) | 130 | power (kw) | 7.6 |
| ejector force(kn) | 10 | Plasticizing Capacity | 5 g/s |
| Injection Pressure | 20 MPA | Screw Speed | 0~100 RPM |
| Clamp Tonnage | 8 T | Toggle Stroke | 95 MM |
| Space Between Tie Bars | 130*130 MM | Max. Mold Height | 150 MM |
| Min. Mold Height | 50 MM | Ejector Stroke | 30 MM |
| Ejector Tonnage | 10 KN |
