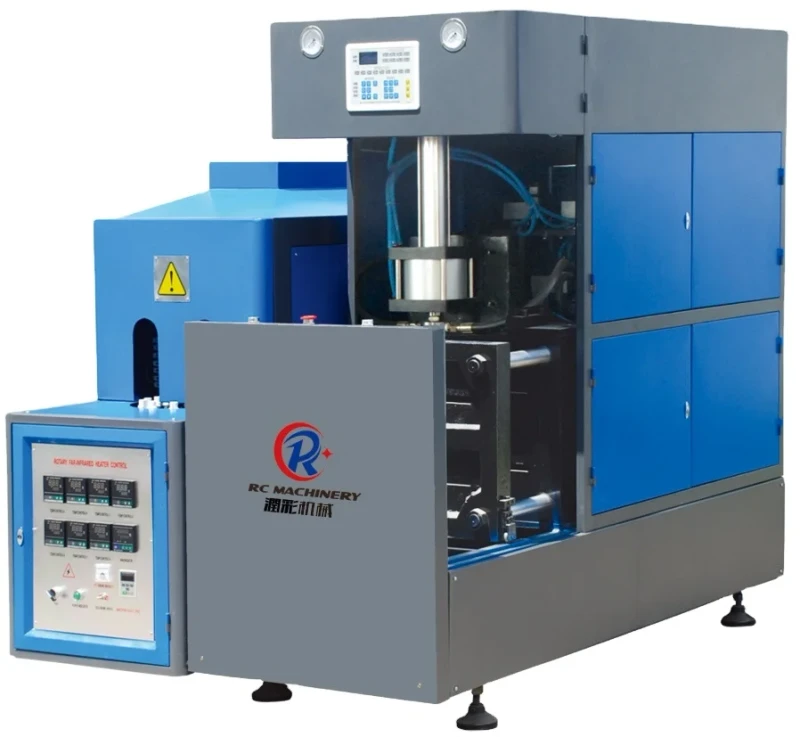

Factory Supplier Bottle Blow Molding Machine for Plastic Bottle
Factory Supplier Bottle Blow Molding Machine for Plastic Bottle
| plastic processed | PP, PET | automation | Semi-Automatic |
| voltage | 3 phrase 380/220V 50/60HZ | power (kw) | 17.5 |
| PLC Brand | Siemens, Bothfit, LG | Rotary Cylinder Brand | SMC, Yongcheng |
| High Pressure Valve Brand | Parker | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | PLC |
| key selling points | high pressure protection,no noise,easy to maintain | neck diameter(mm) | 100 |
| max.bottle diameter(mm) | 200 | clamping force (kn) | 65 |
| weight (kg) | 250 | max.bottle height(mm) | 450 |
| dimension(l*w*h) | 175*67*186 cm | Trait | The machine is small with low investment, easy and safe for operating. |
| Delivery time | The machine and mould will be made within 15 working days | Product name | PET Bottle Blowing Machine |
| Suitable bottle | 100-7000ml/6000ml Bottle | Theoretical output | 300-800PCS/H |
| Preform inner diameter | 10mm-160mm | Max.mould plate Dimenstion(L x W) | 400x460mm |
| Max.mould thickness | 300mm | Mould opening stroke | 28mm |
| Blow Moulding Type | Stretch Blow Moulding |
