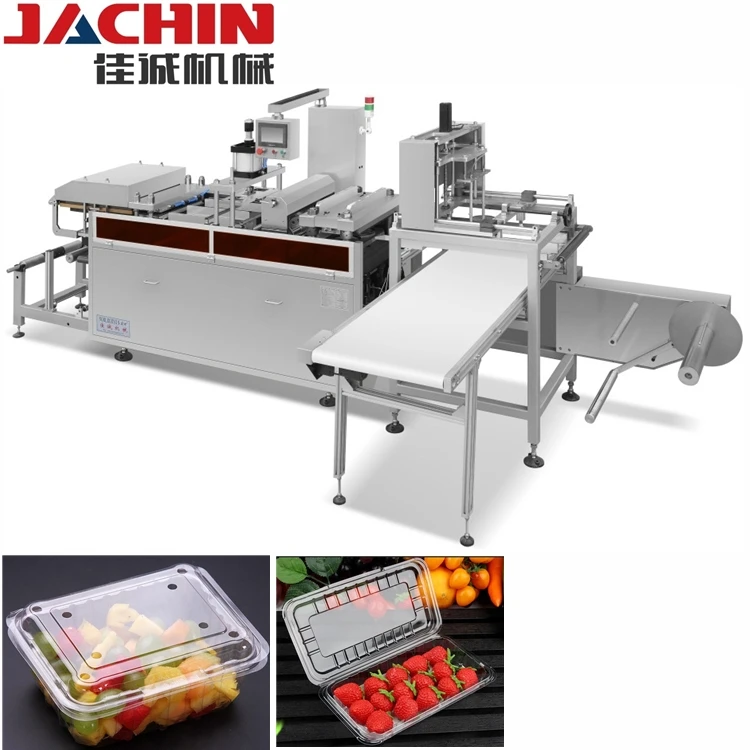

Food Container Thermoforming Machine Plastic Transparent Fruit Clamshell Box Making Machine for Food Fruit Biscuit Sandwich

Food Container Thermoforming Machine Plastic Transparent Fruit Clamshell Box Making Machine for Food Fruit Biscuit Sandwich
  • Food Container Thermoforming Machine Plastic Transparent Fruit Clamshell Box Making Machine for Food Fruit Biscuit Sandwich

    • Food Container Thermoforming Machine Plastic Transparent Fruit Clamshell Box Making Machine for Food Fruit Biscuit Sandwich

    Request a Quote
    plastic typePVC, PETproduct typeplastic products
    processing typethermoformingproduction speed(cycles/min)10-35 times/minute
    power(kw)13.5voltage380v, 50hz, 3phases
    core componentsPLC, Motormachinery test reportProvided
    video outgoing-inspectionProvidedkey selling pointsStable
    dimension(l*w*h)4450*1850*1800mmforming width (mm)320
    forming length (mm)470weight (t)2.7
    max.forming height(mm)47air pressure(mpa)0.7
    sheet thickness(mm)0.15 - 0.6 mmheating power (kw)4.5
    air comsumption(l/min)0.4water comsumption(l/min)1
    Max.Formed Area470*320mmMax. Forming Depth47mm
    ControlPLC+Touch ScreenMOQ1 Set
    ModelJC-500DKeywordThermoforming Molding Machine
