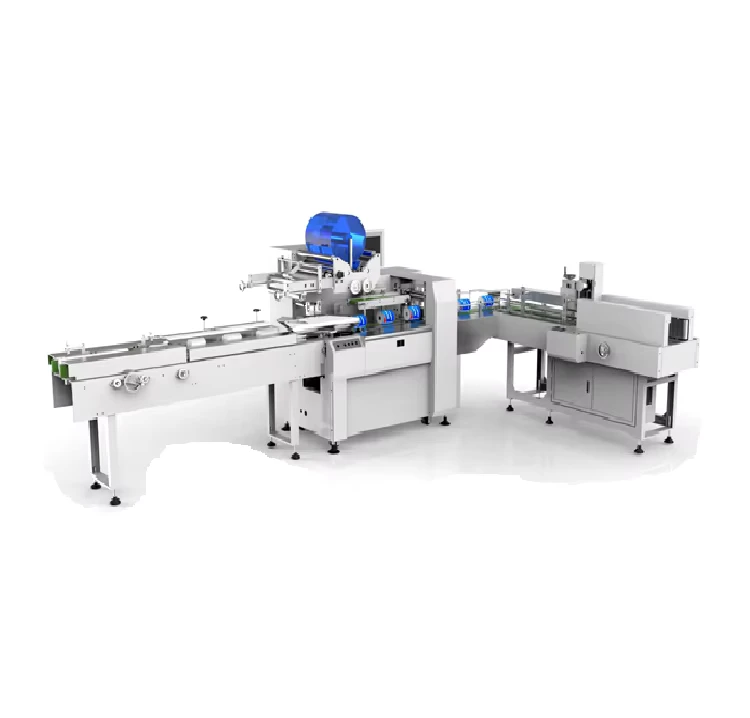

Full Automatic Single Roll Toilet Tissue Laminating Machine Small Toilet Rolling Paper Wrapping Machine
Full Automatic Single Roll Toilet Tissue Laminating Machine Small Toilet Rolling Paper Wrapping Machine
| type | Paper packing Machine | Working Width | 320~420mm |
| production capacity | 150-200pcs/min | voltage | 3 phase 4 line 380V 50HZ/60HZ |
| plc brand | Delta | computerized | Yes |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | PLC, Touch screen PLC | key selling points | Automatic |
| Weight (KG) | 2200 | dimension(l*w*h) | (L)4330mm* (W)3450mm* (H)1700(mm) |
| Packing Speed | 150-200 pcs/min (Code distance≤ 270mm) | Film Material | SPP |
| Film Thickness | 0.018mm-0.03mm | Compress Air Consumption | 6kg/cm2 0.25m3/min |
| Power Supply | 3 phase 4 line 380V 50HZ/60HZ, control voltage DC24V | Machine Weight | 2200 KG |
| General Power | 19 KW | Outer Dimension | (L)4330mm* (W)3450mm* (H)1700(mm) |
| Motor Power | 1.5 Kw (Film moving motor) 1Kw (End-seal motor) | Machine Motor Power | 1Kw (Pusher motor) 0.75 Kw +0.75 Kw (Tidy and pushing motor) |
