Professional Manufacturer of Plastic Processing Machinery

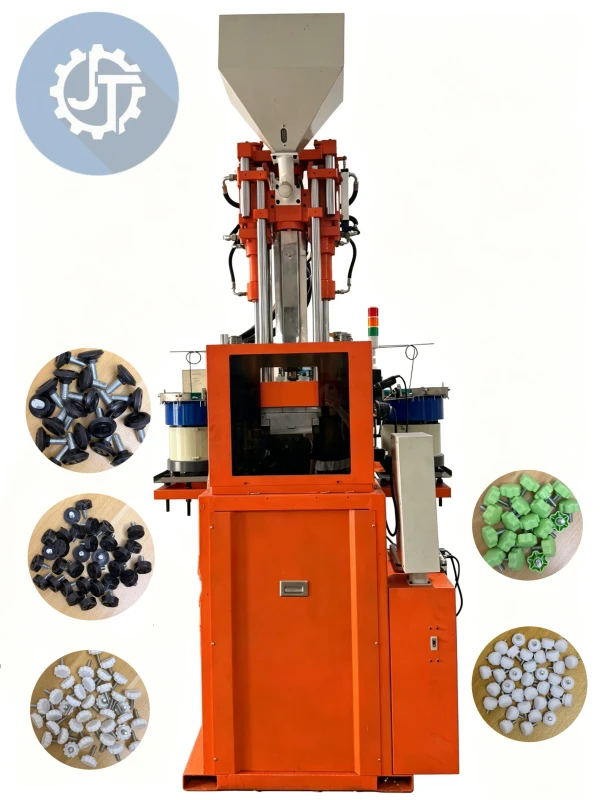

Full Automatic Vertical Injection Molding Machine for Screw Rubber Plastic Overmolding
Full Automatic Vertical Injection Molding Machine for Screw Rubber Plastic Overmolding
| machine type | Electric | distance between tie bars | 361x265 |
| style | VERTICAL | key selling points | Automatic, Energy Saving, Long Service Life, Easy To Operate |
| core components | PLC | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 85 |
| injection weight (g) | 0 | injection rate (g/s) | 85 |
| weight (kg) | 3000 | power (kw) | 7.5 |
| theoretical shot volume(cm³) | 163 | screw speed (rpm) | 0 |
| screw diameter (mm) | 40 | Screw speed r/min | 0 -180 |
| Theoretical injection volume m² | 163 | Gauge rod stroke (mm) | 130 |
| Injuring force (kg/m²) | 1588 | Maximum travel of the template (in mm) | 320 |
| Work surface mm | 520x420 | Heating power (in kilowatts) | 4.8 |
| Overall dimensions (in meters) | 1 .6x1 .1x3.0 |
