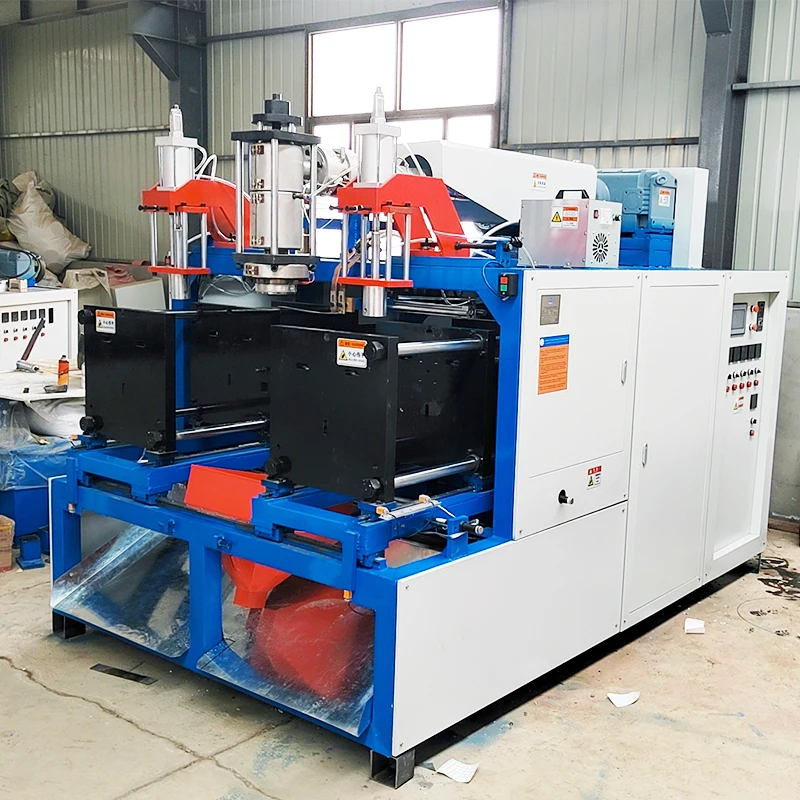

Fully Automatic High Rigidity Plastic HDPE PP PC ABS Small Bottle Blow Molding Machine

Fully Automatic High Rigidity Plastic HDPE PP PC ABS Small Bottle Blow Molding Machine
  • Fully Automatic High Rigidity Plastic HDPE PP PC ABS Small Bottle Blow Molding Machine

    • Fully Automatic High Rigidity Plastic HDPE PP PC ABS Small Bottle Blow Molding Machine

    Request a Quote
    plastic processedHDPE, PEClamping Force (kN)800
    voltage380 VautomationAutomatic
    No. of Screw Heating Zone8plc brandOther
    core componentsPLCkey selling pointsHigh Rigidity
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)25power (kw)16.5
    weight (t)1500dimension(l*w*h)2600*1600*1900
    Screw L/D Ratio25screw diameter (mm)55
    screw heating power(kw)8extruder motor power(kw)7.5
    mold platen size(width)(mm)230mold platen size(height)(mm)400
    air pressure(mpa)0.6air comsumption(m³/min)0.6
    die head heating power(kw)8
