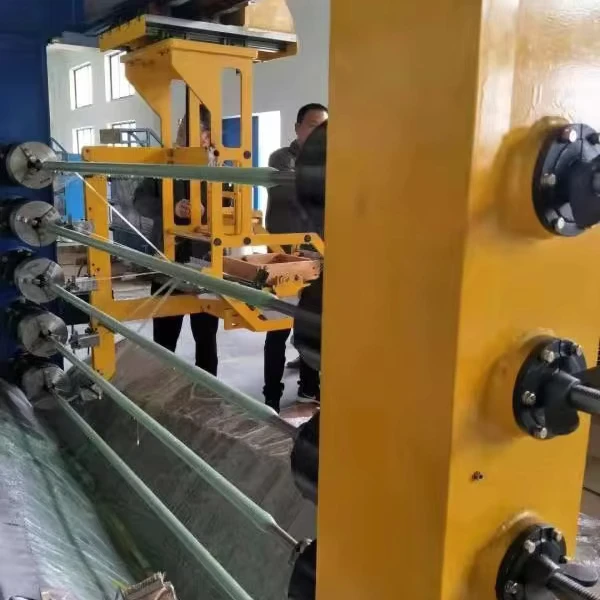

Gantry-type Winding Machine for Winding Long Filaments of Sleeves Insulating Tubes

Gantry-type Winding Machine for Winding Long Filaments of Sleeves Insulating Tubes
  • Gantry-type Winding Machine for Winding Long Filaments of Sleeves Insulating Tubes

    • Gantry-type Winding Machine for Winding Long Filaments of Sleeves Insulating Tubes

    Request a Quote
    voltage380 Vautomatic gradeAutomatic
    machinery capacitycontrollablekey machinesTrack and drive shaft
    Weight (KG)7000Product diameterdiameter10mm-diameter1000mm
    Product lengthNot exceeding 6000mmwinding angle≥ 45 ° ≤ 89 °
    Spinning speed≤100m/minspindle speed≤78rpm.
    trolley speed60m/min.Control methodSpindle and trolley dual servo+digital control system
    resin bathEquipped with heating functionTotal equipment power15/20KW±5KW
    Equipment layout areaWidth 10000mm, length 8600mm (when the product length is 6000mm)
