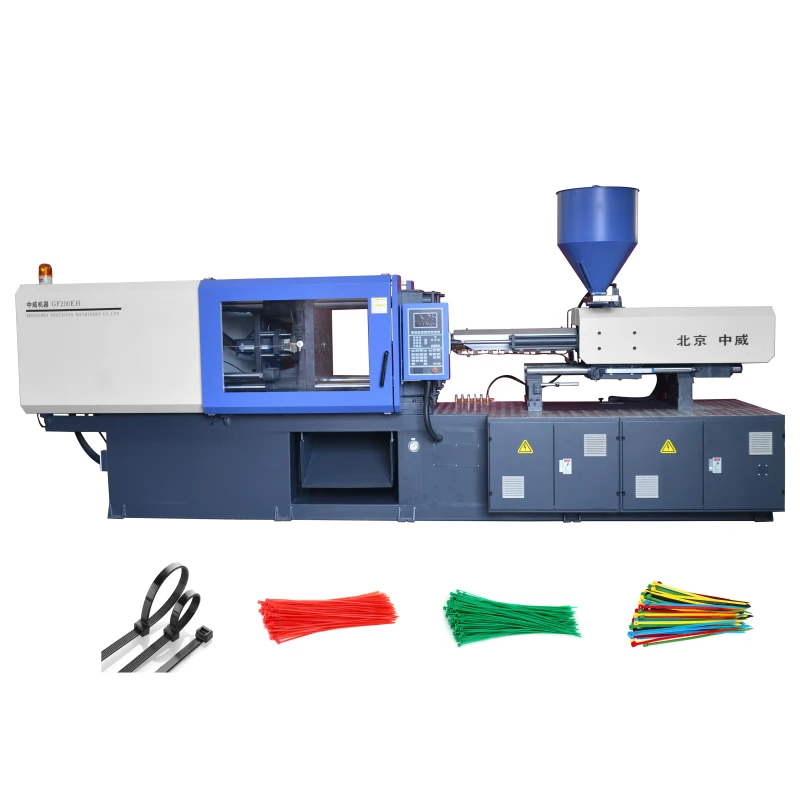

GF200EH Nylon Cable Plastic Injection Molding Machine 200 Tons Molding Machine
GF200EH Nylon Cable Plastic Injection Molding Machine 200 Tons Molding Machine
| machine type | Hydraulic | plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP |
| style | Horizontal | key selling points | Stable performance |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 447 g |
| injection rate (g/s) | 165.62 g/s | weight (kg) | 6200 kg |
| power (kw) | 21 kW | ejector stroke(mm) | 160 mm |
| ejector force(kn) | 62 kN | theoretical shot volume(cm³) | 491 cm³ |
| screw speed (rpm) | 0 - 204 rpm | screw diameter (mm) | 50 mm |
| Screw L/D Ratio | 20 | open stroke(mm) | 490 mm |
| Product name | Injection Molding Machine | Model | GF200EH |
| Function | plastic parts production | Application | Inserting Plastic Products |
| Motor | Servo Energy Saving | Machiner Dimensions(mm) | 6100*1600*2500 |
| Machine Color | white+blue | Advantage | energy saving |
| stable performance | short cycle time |
