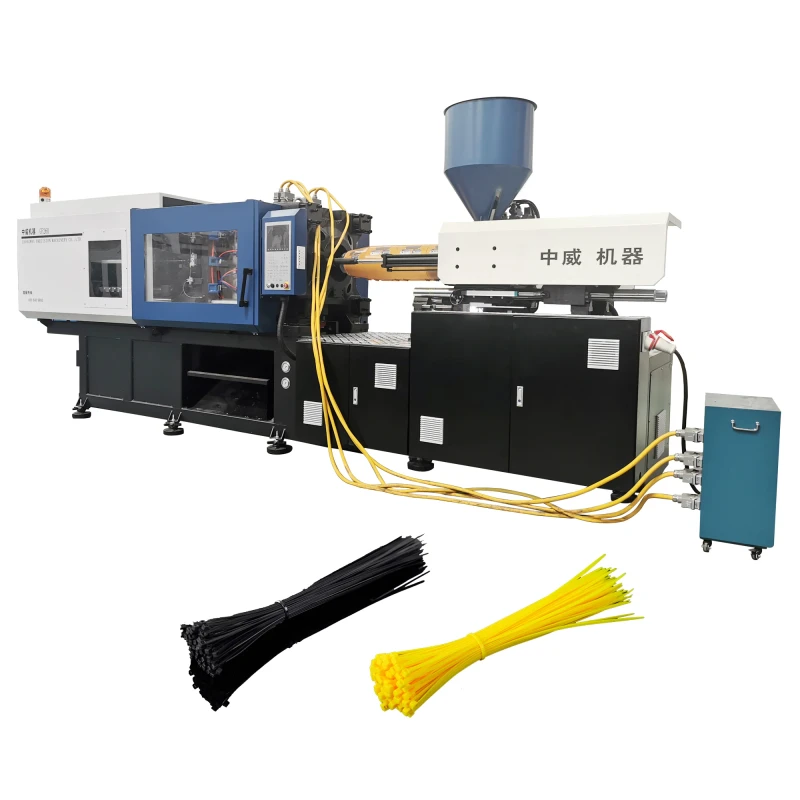

GF260EH Injection Machines Molding Plastic Plastic Injection Molding Machine Making Machine Tie Cables
GF260EH Injection Machines Molding Plastic Plastic Injection Molding Machine Making Machine Tie Cables
| machine type | Hydraulic | distance between tie bars | 590x590 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Stable performance | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 573 g | injection rate (g/s) | 200 g/s |
| weight (kg) | 8000 kg | power (kw) | 31 kW |
| mold height(mm) | 220 - 600 mm | ejector stroke(mm) | 160 mm |
| ejector force(kn) | 62 kN | theoretical shot volume(cm³) | 632 cm³ |
| screw speed (rpm) | 0 - 230 rpm | screw diameter (mm) | 55 mm |
| Screw L/D Ratio | 19 | open stroke(mm) | 550 mm |
| Product name | Injection Molding Machine | Model | GF260EH |
| Function | Plastic Parts Production | Application | Inserting Plastic Products |
| Motor | Servo Energy Saving | Machiner Dimensions(mm) | 5700*1500*2400 |
| Machine Color | white+blue | Advantages | Energy Saving |
| Stable performance | short cycle time |
