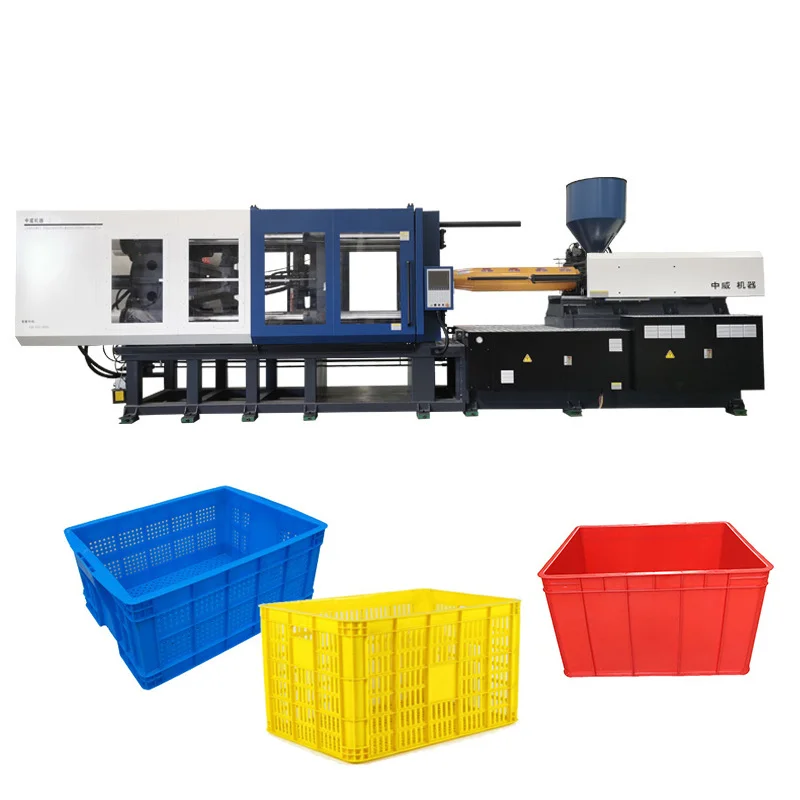

GF530k Plastic Injection Molding Machine for Basket Making
GF530k Plastic Injection Molding Machine for Basket Making
| machine type | Hydraulic | distance between tie bars | 820*800mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | High-Accuracy | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 2862 g | injection rate (g/s) | 536.9 g/s |
| weight (kg) | 21000 kg | power (kw) | 62 kW |
| mold height(mm) | 370 - 820 mm | ejector stroke(mm) | 200 mm |
| ejector force(kn) | 110 kN | theoretical shot volume(cm³) | 3146 cm³ |
| screw speed (rpm) | 0 - 180 rpm | screw diameter (mm) | 95 mm |
| Screw L/D Ratio | 17.9 | open stroke(mm) | 790 mm |
| Product name | Injection Molding Machine | Model | GF530K |
| Function | plastic parts production | Application | Inserting Plastic Products |
| Motor | Servo Energy Saving | Machine Dimensions(mm) | 8200*2300*2600 |
| Machine Color | white+blue | Advantage | short cycle time |
| Stable performance | high production |
