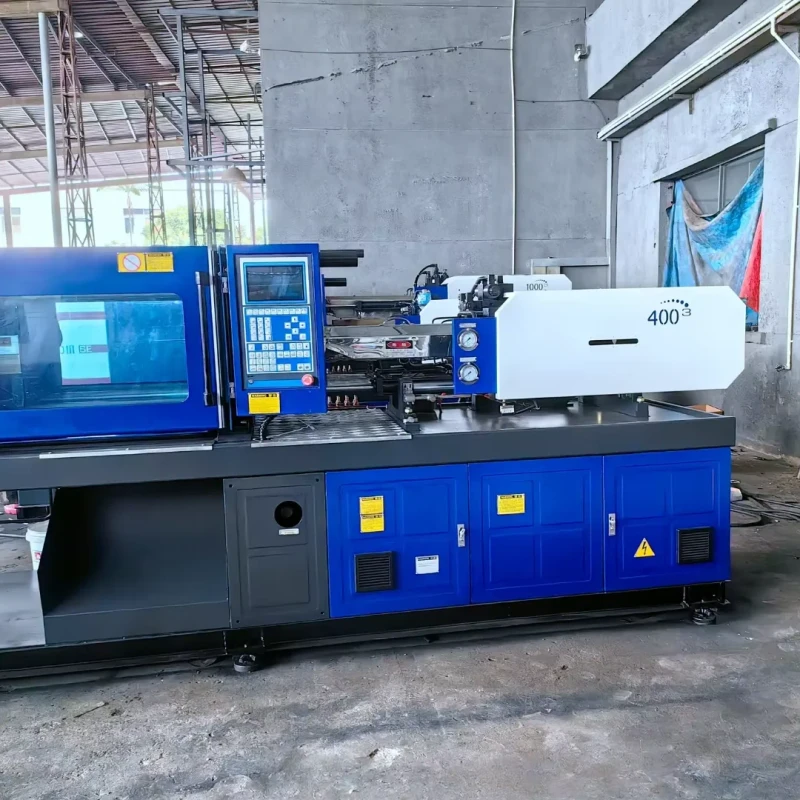

Haitian Hybrid Horizontal Injection Molding Machine 90 Tons Second-hand PET Processing In China
Haitian Hybrid Horizontal Injection Molding Machine 90 Tons Second-hand PET Processing In China
| machine type | Hydraulic, Hybrid | distance between tie bars | 420x420 mm |
| plastic processed | PP, PC, ABS, PET, PVC | style | Horizontal |
| key selling points | Multifunctional | ejector number | 5 |
| core components | PLC, MOTOR, PRESSURE VESSEL, pump, Other | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | plastic |
| plasticizing capacity(g/s) | 110 | injection weight (g) | 195 |
| injection rate (g/s) | 98 | weight (kg) | 100 |
| power (kw) | 13 | mold height(mm) | 150 - 430 mm |
| ejector stroke(mm) | 120 | ejector force(kn) | 33 |
| theoretical shot volume(cm³) | 214 | screw speed (rpm) | 0 - 190 rpm |
| screw diameter (mm) | 40 | Screw L/D Ratio | 21 |
| open stroke(mm) | 350 | Port | Shekou, Nansha |
| Function | Multi-functional, durable and safe | Single package size | 435X113X190 cm |
