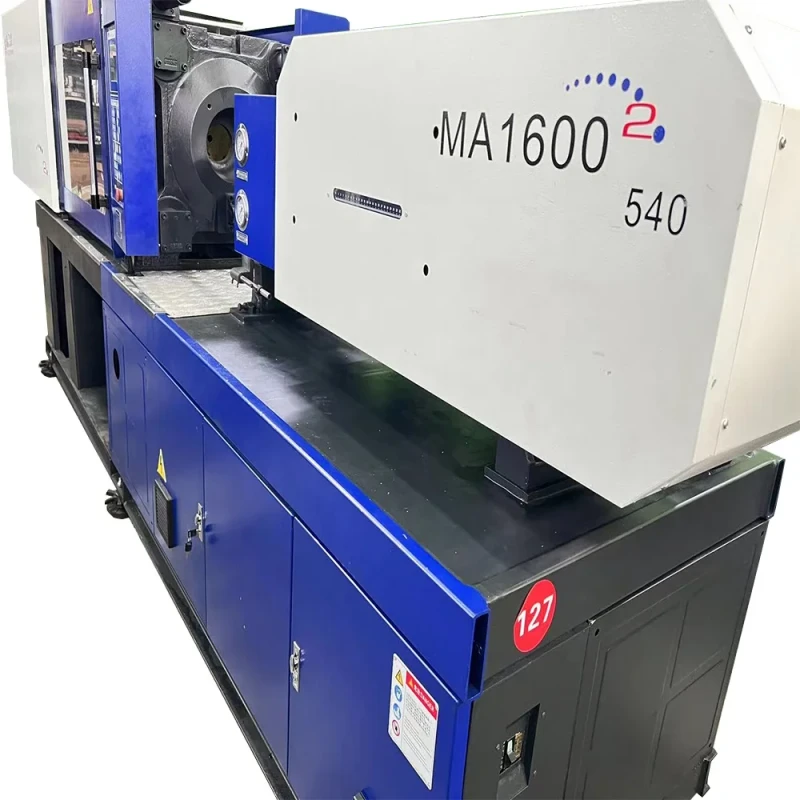

Haitian Precision Used MARSII 160ton Mini Servo Pump Injection Molding Machine Electric Horizontal HDPE PVC ABS PP Energy Saving
Haitian Precision Used MARSII 160ton Mini Servo Pump Injection Molding Machine Electric Horizontal HDPE PVC ABS PP Energy Saving
| machine type | Electric | distance between tie bars | 470x470 mm |
| plastic processed | PP, ABS, PVC, HDPE, PE | style | Horizontal |
| key selling points | Energy Saving | ejector number | 2 |
| core components | Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 18 |
| injection weight (g) | 291 | injection rate (g/s) | 148 |
| weight (kg) | 5200 | power (kw) | 10 |
| mold height(mm) | 180 - 520 mm | ejector stroke(mm) | 140 |
| ejector force(kn) | 33 | theoretical shot volume(cm³) | 320 |
| screw speed (rpm) | 1 - 205 rpm | screw diameter (mm) | 45 |
| Screw L/D Ratio | 20 | open stroke(mm) | 430 |
| Heating power | 4.55kW | Injection pressure | 266Mpa |
| Machine weight | 5.2TON | Machiner Dimensions(mm) | 5.07*1.35*1.99 |
| Plastic Processed | PP | Type | Tube Head Injection |
| Theoretical Shot Volume(cm³) | 320 | Ejector Force(kN) | 1600 |
| Marketing Type | Hot Product 2019 |
