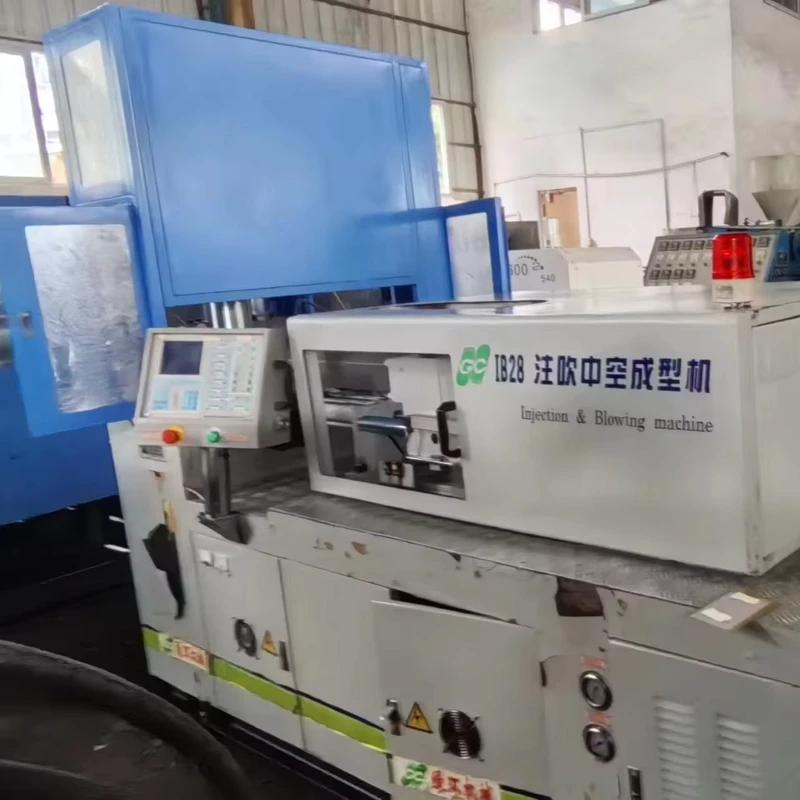

HDPE Injection Blow Molding Machine
HDPE Injection Blow Molding Machine
| plastic processed | HDPE | Clamping Force (kN) | 2000 |
| voltage | 380v | automation | Automatic |
| No. of Screw Heating Zone | 6 | core components | PLC, Motor, Pump |
| key selling points | Easy To Operate | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 100 kg/h |
| power (kw) | 22 | weight (t) | 4 |
| dimension(l*w*h) | 3..5 x1.5x2.5 | Screw L/D Ratio | 20 |
| screw diameter (mm) | 45 mm | screw heating power(kw) | 7.5 kW |
| extruder motor power(kw) | 22 kW | mold platen size(width)(mm) | 450 mm |
| mold platen size(height)(mm) | 450 mm | air pressure(mpa) | 1 MPa |
| air comsumption(m³/min) | 0.5 m³/min | die head heating power(kw) | 11 kW |
