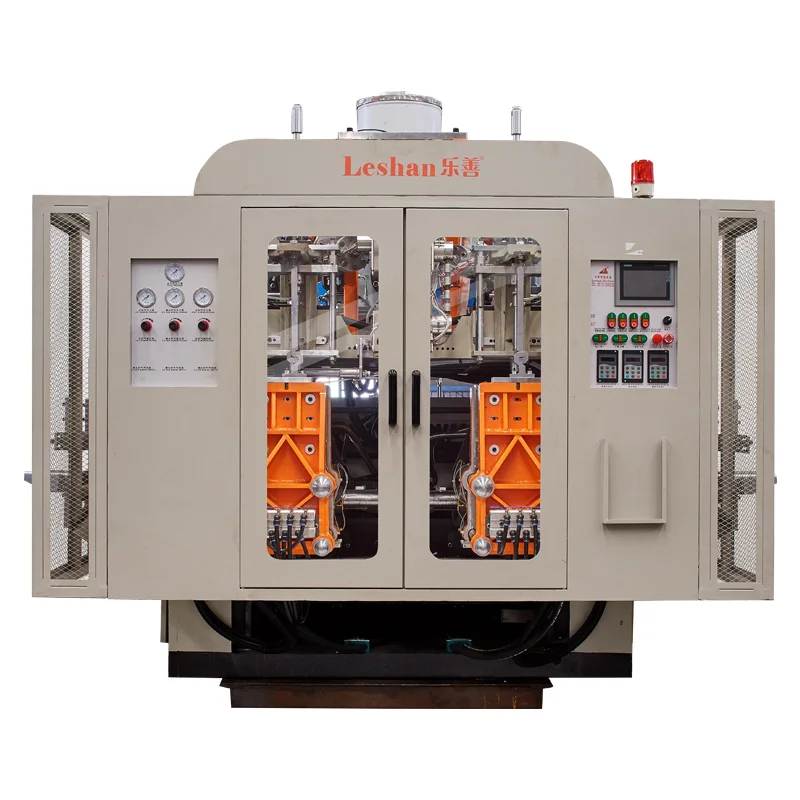

HDPE PE 1 Litre Double Station Extrusion Blow Molding Machine

HDPE PE 1 Litre Double Station Extrusion Blow Molding Machine
  • HDPE PE 1 Litre Double Station Extrusion Blow Molding Machine

    • HDPE PE 1 Litre Double Station Extrusion Blow Molding Machine

    Request a Quote
    plastic processedPE, PP, HDPE, PC, ABS, PVC, EVA, PAClamping Force (kN)100
    voltage380VautomationAutomatic
    No. of Screw Heating Zone3plc brandSiemens
    core componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pumpkey selling pointsAutomatic
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)95power (kw)53.8
    weight (t)6.3dimension(l*w*h)3930X2500X2200
    Screw L/D Ratio24screw diameter (mm)75
    screw heating power(kw)10extruder motor power(kw)22
    mold platen size(width)(mm)380mold platen size(height)(mm)460
    air pressure(mpa)0.8air comsumption(m³/min)0.35
    die head heating power(kw)8.5AutomaticYes
    After-sales Service Provided 1Field maintenance and repair serviceAfter-sales Service Provided 2Field installation, commissioning and training
    After-sales Service Provided 3Free spare partsAfter-sales Service Provided 4Video technical support
    After-sales Service Provided 5Online supportAfter Warranty Service 1Video technical support
    After Warranty Service 2Online supportAfter Warranty Service 3Spare parts
