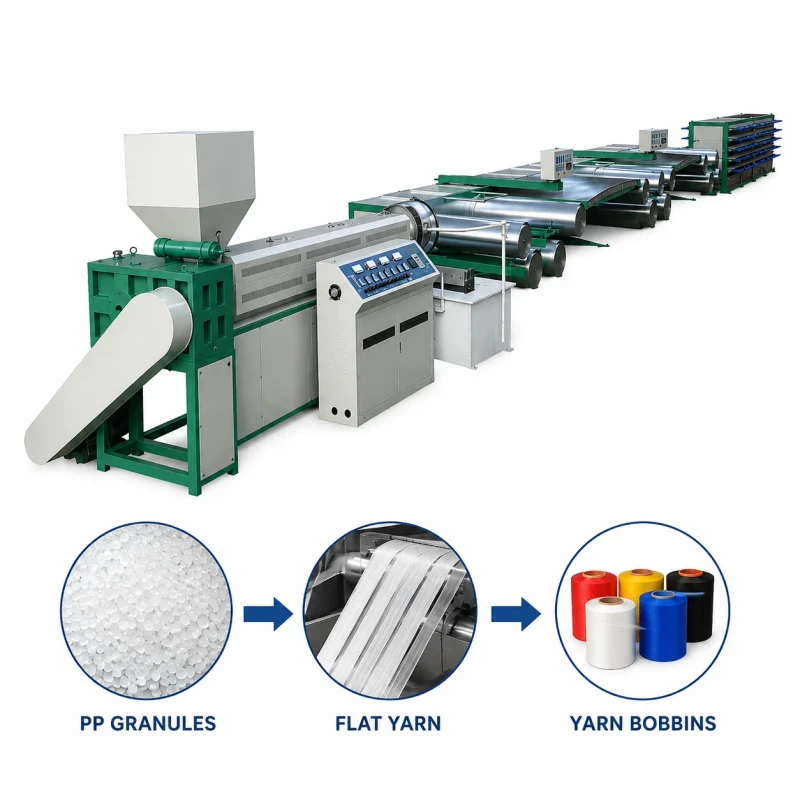

Heavy Duty PP Flat Yarn Extrusion Line for Circular Loom Woven Fabric and FIBC Tape Production
Heavy Duty PP Flat Yarn Extrusion Line for Circular Loom Woven Fabric and FIBC Tape Production
| application | Pipe,Sheet,Film,Profile,Pelletizing,Straw,PP | plastic processed | PP,HDPE,virgin and recycled material |
| extruder type | single screw | screw diameter (mm) | 120 |
| voltage | 380V,110V,220V,440V | Screw L/D Ratio | 30:1 |
| Screw Material | 38CrMoALA | key selling points | High Productivity,Long Service Life,Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor, Gear, PLC, Gearbox, Screw | Screw Design | Single-screw |
| Screw Speed (rpm) | 110 | Weight (KG) | 7800 |
| dimension(l*w*h) | 20500*2200*1450 | power (kw) | 150 |
| Name | PP Flat Yarn Extruder for Woven Bag Circular Loom Production Line | Raw Material | PP / HDPE Virgin & Recycled Material |
| Final Product | PP Flat Yarn Bobbins | Application | PP Woven Bags, FIBC, Tarpaulin, Geotextile |
| Production Capacity | 100-350 kg/h | Tape Width | 2-5 mm |
| Tape Thickness | 40-120 Micrometer | Winding Type | Automatic Bobbin Winding |
| After-sales Service Provided | Video technical support | Control System | PLC Touch Screen |
