Professional Manufacturer of Plastic Processing Machinery

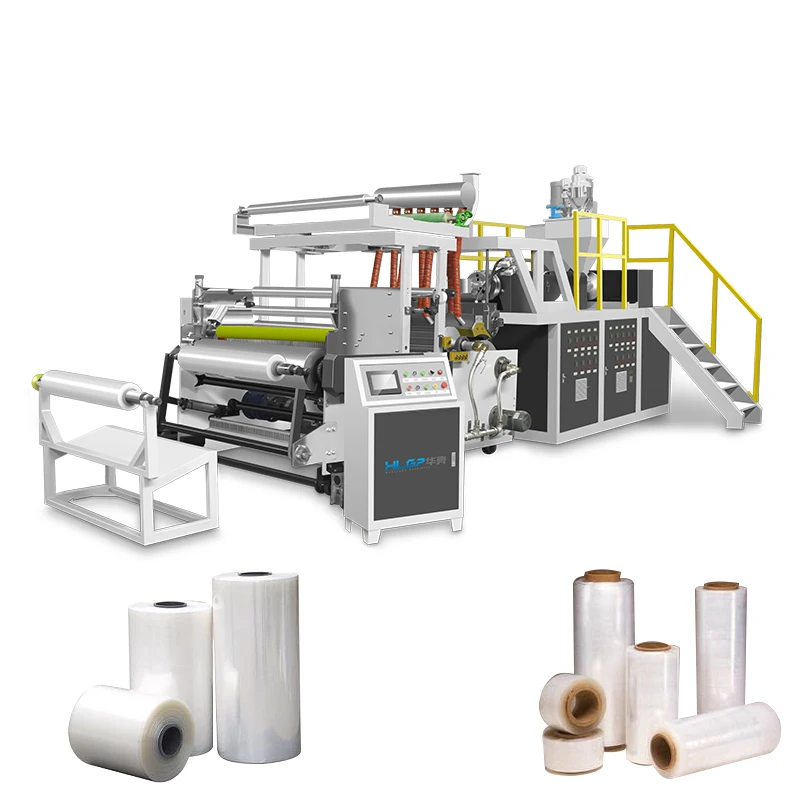

High Capacity Full Automatic 2 Or 3 Layers Cast Film PE Plastic Stretch Film Making Machine 1000mm
High Capacity Full Automatic 2 Or 3 Layers Cast Film PE Plastic Stretch Film Making Machine 1000mm
| application | Granules, Film, Packaging | plastic processed | PE, LDPE, LLDPE |
| screw diameter (mm) | 80/60 | voltage | 380/220/480V |
| Screw L/D Ratio | 34:1 | Screw Material | 38CrMoALA |
| key selling points | High-Accuracy | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other |
| Screw Design | Double-screw | Screw Speed (rpm) | 75 |
| Weight (KG) | 10000 | dimension(l*w*h) | 9300x2900x2500 |
| power (kw) | 100 | Product Name | Stretch Film Machine |
| After-sales Service Provided | Video Technical Support | Raw material | LDPE/LLDPE |
| L/D | 34:1 | Line speed | 35m/min |
| Type | casting extruder | Total Power | 100 KW |
| Thickness of Film | 12~50 microns (minimum thickness can be 8 microns) | Designed Linear Speed | 150 M/Min |
| Extrusion Output | 80~150 kgs/h |
