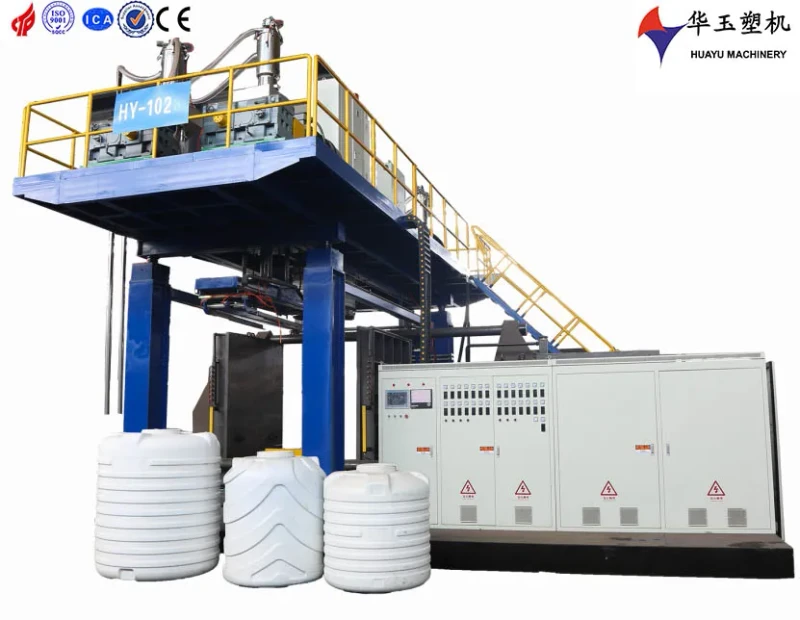

High Performance 1000L Eight Layer Bucket Blow Molder
High Performance 1000L Eight Layer Bucket Blow Molder
| plastic processed | HDPE | Clamping Force (kN) | 600 |
| voltage | Voltage | automation | Automatic |
| No. of Screw Heating Zone | 6 | plc brand | Siemens |
| core components | PLC, Gearbox, Gear, Pump | key selling points | Easy To Operate, Energy Saving, Automatic |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 600 | power (kw) | 540 |
| weight (t) | 80 | dimension(l*w*h) | 8*9*6.5 |
| Screw L/D Ratio | 28 | screw diameter (mm) | 80 |
| screw heating power(kw) | 32 | extruder motor power(kw) | 37 |
| mold platen size(width)(mm) | 1500 | mold platen size(height)(mm) | 1600 |
| air pressure(mpa) | 0.8 | air comsumption(m³/min) | 4.5 |
| die head heating power(kw) | 80 |
