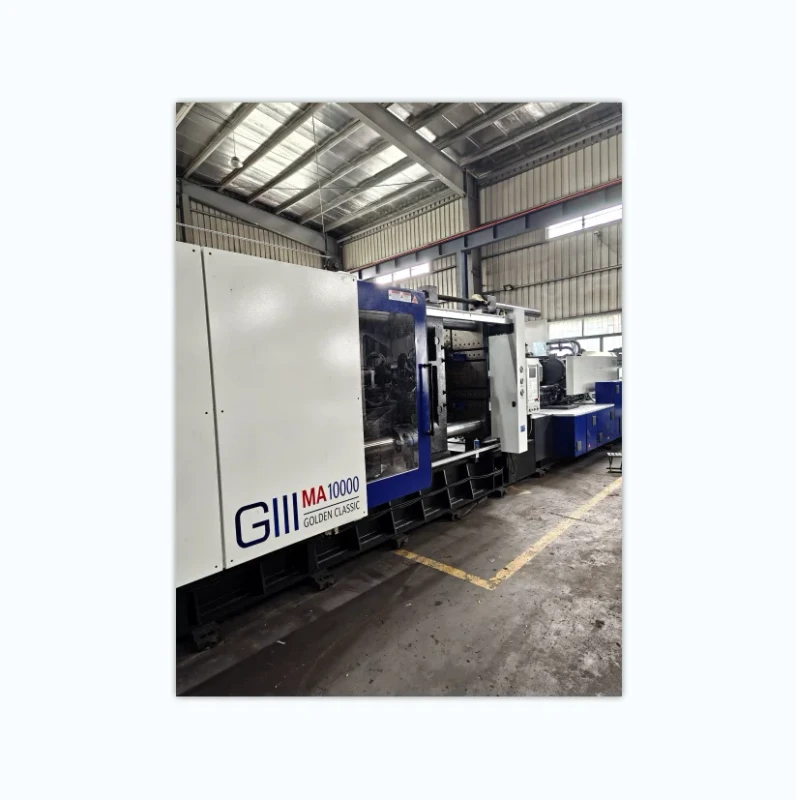

High Performance Injection Molding Machine 1000T Industrial Large Scale Plastic Injection Molder
High Performance Injection Molding Machine 1000T Industrial Large Scale Plastic Injection Molder
| machine type | Hydraulic | distance between tie bars | 1160x1160mm |
| plastic processed | PP, PC, PVC, PE | style | Horizontal |
| key selling points | Easy To Operate | ejector number | Other |
| core components | Motor, Engine | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 104 |
| injection weight (g) | 4411 | injection rate (g/s) | 802 |
| weight (kg) | 51000 | power (kw) | 71.55 |
| mold height(mm) | 500 - 1160 mm | ejector stroke(mm) | 320 |
| ejector force(kn) | 215 | theoretical shot volume(cm³) | 4847 |
| screw speed (rpm) | 0 - 105 rpm | screw diameter (mm) | 110 |
| Screw L/D Ratio | 20.2 | open stroke(mm) | 1220 |
| Product name | Plastic Injection Moulding Machine |
