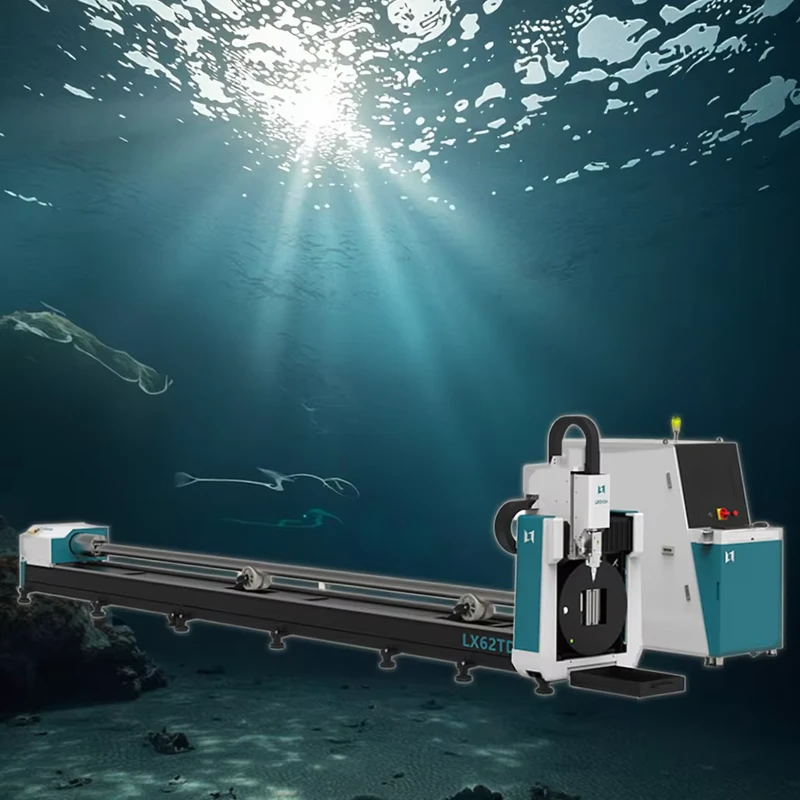

High precision LX62TD Steel Cutter CNC Round Square Tube Laser Cutting Machine 1000W 6000W Fiber Laser Pipe Cutter

High precision LX62TD Steel Cutter CNC Round Square Tube Laser Cutting Machine 1000W 6000W Fiber Laser Pipe Cutter
  • High precision LX62TD Steel Cutter CNC Round Square Tube Laser Cutting Machine 1000W 6000W Fiber Laser Pipe Cutter

    • High precision LX62TD Steel Cutter CNC Round Square Tube Laser Cutting Machine 1000W 6000W Fiber Laser Pipe Cutter

    Request a Quote
    laser typeFiber LaserApplicable MaterialMetal
    cutting thickness0-6/10mmLaser Power1000 W, 1500 W, 2000 W, 3000 W, 4000 W, 6000 W
    products handledTubeCutting Speed0-60m/min
    configuration3-AxisFeatureAutomated Loading
    mode of operationContinuous Wavecooling modeWATER COOLING
    control system brandCypcutservo motor brandYaskawa
    guiderail brandHIWINlaser head brandRaytools
    optical lens brandII-VIgraphic format supportedAI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
    conditionNewKey Selling PointsAutomatic
    cnc or notYesControl SoftwareCNC
    Weight2800ModelLX62TD
    Laser Power1-6kwMaximum acceleration0.6G
    Maximum Idle Running Speed60r/minRepeat Positional Accuracy±0.01mm/m
    Position Accuracy±0.02mm/mMachine size8500*1100*1900mm
    Max. finished part length (mm)1200Pipe remain length (mm)180
    "z" axis adjustment range65mm
