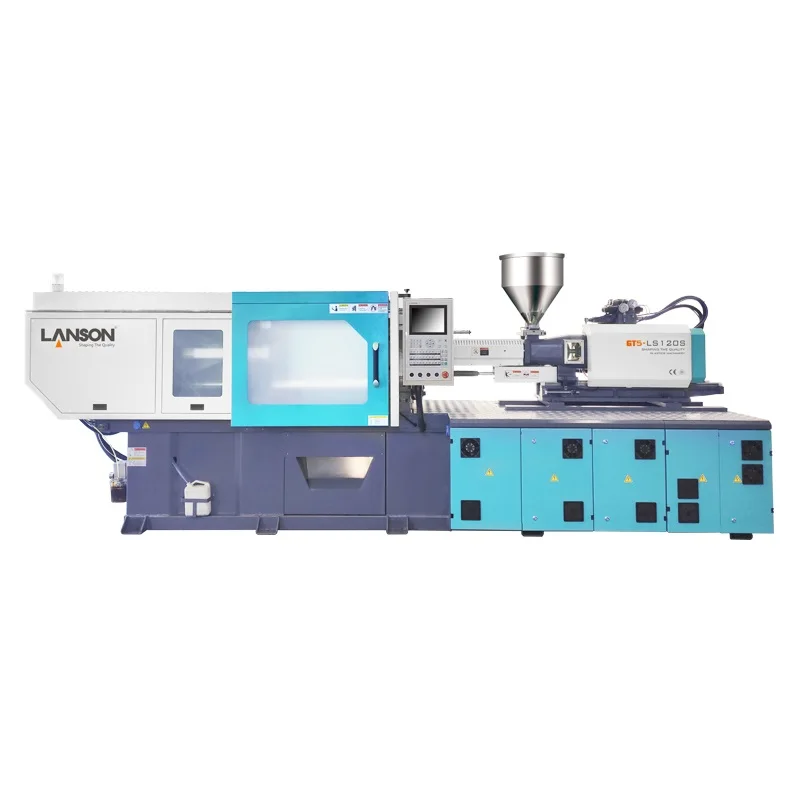

High Precision Small Injection Machine 120ton Plastic Injection Molding Machine

High Precision Small Injection Machine 120ton Plastic Injection Molding Machine
  • High Precision Small Injection Machine 120ton Plastic Injection Molding Machine

    • High Precision Small Injection Machine 120ton Plastic Injection Molding Machine

    Request a Quote
    machine typeHydraulicstyleHorizontal
    key selling pointsHigh Rigidityejector number13
    core componentsEngine, Pressure Vessel, Pump, Bearing, Gear, Motor, Gearbox, PLC, Screwmachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)87.3
    injection weight (g)1103injection rate (g/s)478
    weight (kg)16300power (kw)45
    ejector stroke(mm)205ejector force(kn)111
    theoretical shot volume(cm³)1212screw diameter (mm)70
    Screw L/D Ratio21open stroke(mm)580
    DescriptionGT5-LS120S plastic injection moulding machine 120 tonPricesNegotiable
    Functionprecision, fast response, high efficiency and energy savingvoltage380V/ 50Hz 3P+N+E (alterable)
    After-sales Service ProvidedVideo technical support,Field maintenance and repair service
