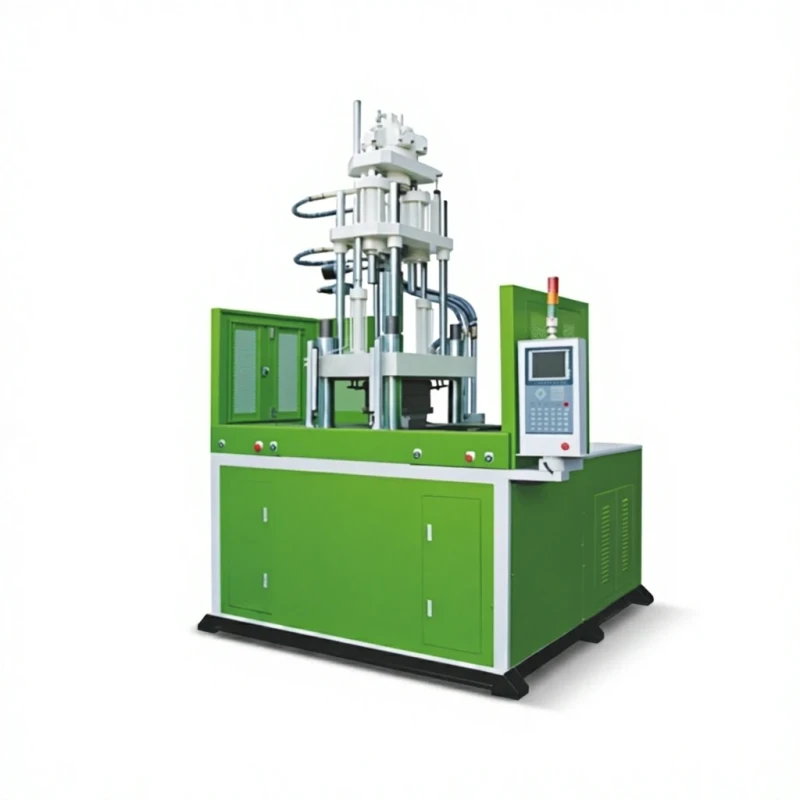

High Precision Vertical Injection Molding Machine Pneumatic Plastic Injector for Laboratory Test and Small Batch Production

High Precision Vertical Injection Molding Machine Pneumatic Plastic Injector for Laboratory Test and Small Batch Production
  • High Precision Vertical Injection Molding Machine Pneumatic Plastic Injector for Laboratory Test and Small Batch Production

    • High Precision Vertical Injection Molding Machine Pneumatic Plastic Injector for Laboratory Test and Small Batch Production

    Request a Quote
    machine typeInjection molding machinedistance between tie bars340*340
    plastic processedPP, PC, ABS, PVC, FRPP/PVC, PEstyleVERTICAL
    key selling pointsMultifunctional, Competitive Price, High-Accuracymachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)20
    injection weight (g)142injection rate (g/s)93
    weight (kg)4000power (kw)15
    mold height(mm)150 - 365ejector stroke(mm)100
    ejector force(kn)26.5theoretical shot volume(cm³)176
    screw speed (rpm)0 - 300screw diameter (mm)32
    open stroke(mm)200Control ModeIntelligent PLC Touch Screen
    Heating SystemMulti-stage PID Temperature ControlApplicationPrecision Laboratory / Small Batch Production
    Safety FeatureEmergency Stop & Overload ProtectionInstallationDesktop / Portable Design
    Material CompatibilityABS, PP, PE, PS, PC, etc.Injection PressureHigh Pressure Stability
    Cooling SystemFan/Water Cooling SupportColorcustom
    Product namePlastic Injection Moulding Machine
