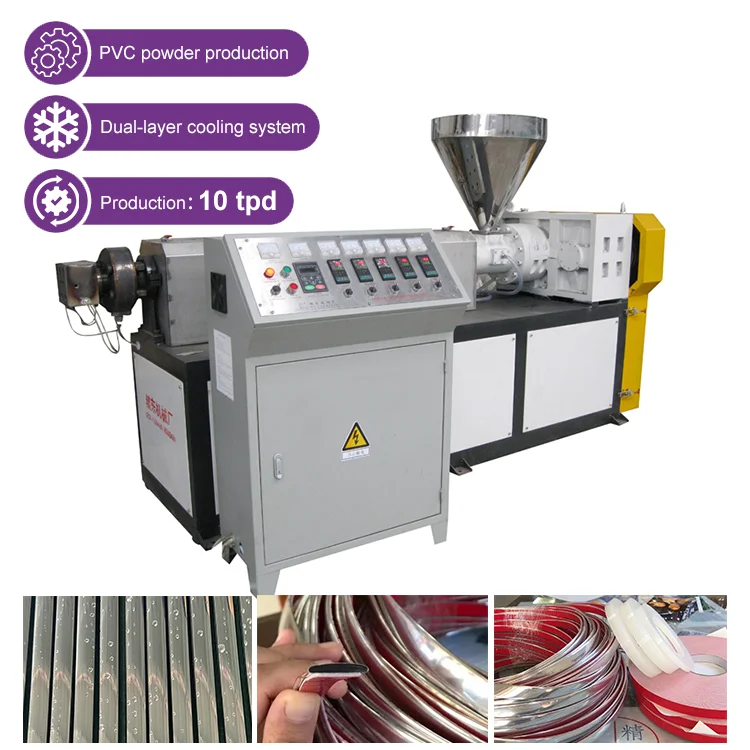

High Productivity PE ABS Plastic Sealing Strip Filament Pelletizing Extruder Production Line with Motor and Gearbox
High Productivity PE ABS Plastic Sealing Strip Filament Pelletizing Extruder Production Line with Motor and Gearbox
| application | Pipe, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, Sealing strip for door & window | plastic processed | PE, PP, PVC, ABS |
| extruder type | single screw | screw diameter (mm) | 65 mm |
| voltage | 220/380V, 50 Hz | Screw L/D Ratio | 33:1 |
| Screw Material | 38CrMoALA | key selling points | High Productivity |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor, Gearbox, Screw | Screw Design | Single-screw |
| Screw Speed (rpm) | 50 | Weight (KG) | 1102 |
| dimension(l*w*h) | 13000mm*3500mm*3000mm | power (kw) | 30 |
| After-sales Service Provided | Engineers available to service machinery overseas | 1 set main extruder | Screw diameter: 65 mm. L/D = 28: 1 |
| Output | 800-1200kg/d | Product Type | Sealing strip for door & window |
| Gear box | Both oblique gear, hardening, polished | Control Panel | 5 zone temperature control, 4 air cooling |
| Cooling bath | Length:5m, stainless steel | Drawing unit | Motor: 1.5 kW, frequency varying |
| Take-up unit | Torque motor,auto fixed length alarming |
