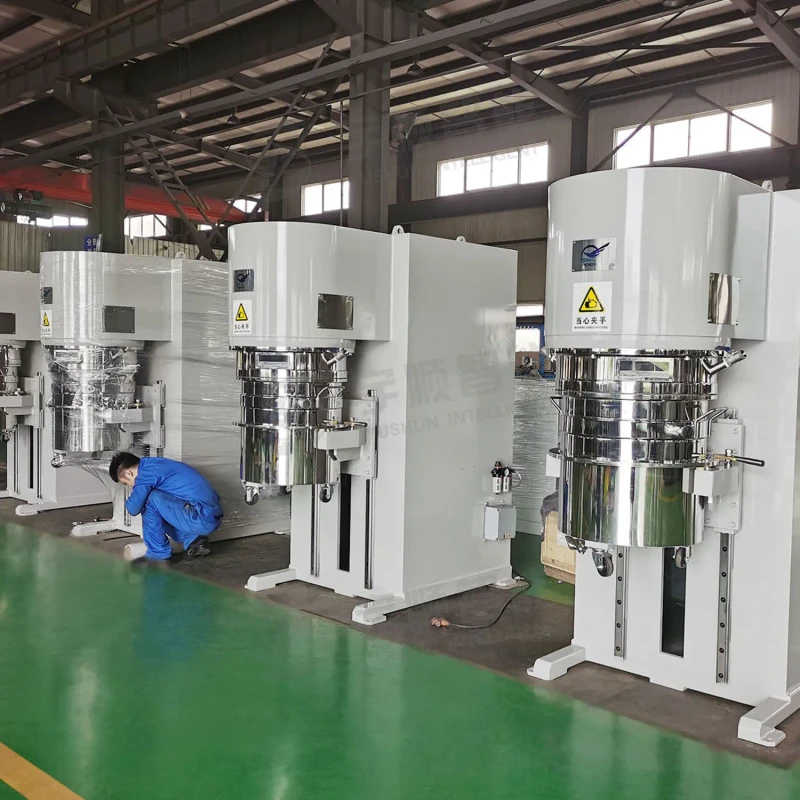

High Purity Electronic Grade Silicomer Mixing Vertical Kneader for Semiconductor Encapsulation
High Purity Electronic Grade Silicomer Mixing Vertical Kneader for Semiconductor Encapsulation
| material processed | Plastics, Chemicals, Battery Paste | Capacity | 60 L |
| mixer type | Planetary Mixer | material | SUS304, SUS316, SUS304L, SUS316L, Stainless Steel |
| product type | Adhesives / Lithium Battery Slurry / Putty | Configuration | Vertical |
| additional capabilities | Dispersing/Mixing/Vacuum/Heating/Cooling | voltage | 220-600V |
| Power (kW) | 4 kW | Motor Type | AC Motor |
| core components | Motor, Gear, Gearbox, Pump, PLC, Bearing, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Energy conservation/multi-function/high efficient |
| weight (kg) | 3060 | range of spindle speed(r.p.m) | 0 - 4500 r.p.m |
| dimension(l*w*h) | 1950*1200*2150 mm | Mixing type | Kneader & Mixing |
| Materials Viscosity | 1,000,000-3,000,000 Cps | Revolution speed | 0~31 r/min |
| Total power | 5.5 kw | Lower barrel size | 500*450 mm |
| Function | Vacuum/Heating/Cooling | Agitator Type | Dual-Blade, Triple-Blade |
| Customization | Full Explosion-Proof, Semi-Explosion-Proof | Vacuum degree | Up to -0.098MPa |
| Structure | Main host up and tank |
